Feature
The main valve is of the spool type that requires no oil lubrication.
A combination of a specially configured packing and a spool enables oilless operation.
Manual button provided as standard
All types are provided with a manual button.
Easy maintenance.
Long-life products. Engineered with prime importance on ease of maintenance, they are very simple in construction with smaller number of component parts.
Also available as three-way valves
You can also be used as a three-way valve by plugging in either standard out is square.
Standard specification
- FLUID
- CLEAN AIR
- FLUID TEMPERATURE
- -20 ～ 60℃
- AMBIENT TEMPERATURE
- -20 ～ 60℃
- DUTY CYCLE
- 100% CONTINUOUSLY RATED
- OPERATING VOLTAGE RANGE
- +10，-15％
- WORKING PRESSURE
- 0.15 ～ 0.99MPa
- Cv. FLOW FACTOR
- 0.5
- ELECTRICAL SPECIFICATIONS
- See below
ELECTRICAL SPECIFICATIONS
| AC | DC | |||
|---|---|---|---|---|
| V/Hz | INRUSH A | HOLDING A | V | A |
| GENERAL PURPOSE TYPE 3P | COIL INSULATION CLASS : F | |||
| 100/50 | 0.22 | 0.16 | 24 | 0.25 |
| 100/60 | 0.18 | 0.09 | 48 | 0.17 |
| 110/60 | 0.20 | 0.10 | 100 | 0.061 |
| 200/50 | 0.11 | 0.053 | 110 | 0.067 |
| 200/60 | 0.09 | 0.050 | 125 | 0.054 |
| 220/60 | 0.10 | 0.051 | ||
| AC | DC | |||
|---|---|---|---|---|
| V/Hz | INRUSH A | HOLDING A | V | A |
| EXPLOSION-PROOF TYPE E12PU | COIL INSULATION CLASS : H | |||
| 100/50 | 0.27 | 0.16 | 24 | 0.33 |
| 100/60 | 0.25 | 0.13 | 48 | 0.15 |
| 110/60 | 0.25 | 0.15 | 100 | 0.072 |
| 200/50 | 0.14 | 0.08 | 110 | 0.08 |
| 200/60 | 0.13 | 0.07 | 125 | 0.06 |
| 220/60 | 0.13 | 0.08 | ||
Product Image

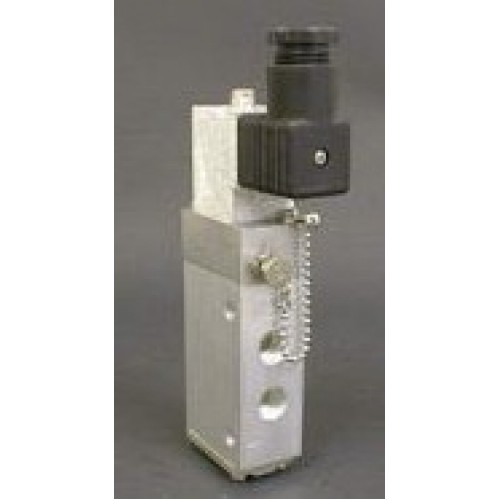

MB15G GENERAL PURPOSE TYPE
| MB15G-8 ～ 10 GENERAL PURPOSE TYPE | ||
|---|---|---|
| NOMINAL DIAMETER | MOUNTING LENGTH | H |
| 8 | 50 | 167 |
| 10 | 50 | 167 |
MB15G EXPLOSION-PROOF TYPE
| MB15G-8 ～ 10 EXPLOSION-PROOF TYPE | ||
|---|---|---|
| NOMINAL DIAMETER | MOUNTING LENGTH | H |
| 8 | 50 | 196 |
| 10 | 50 | 196 |
DESCRIPTION OF OPERATION
