Gems Pressure Transducer & Oil Digital Pressure Transducers

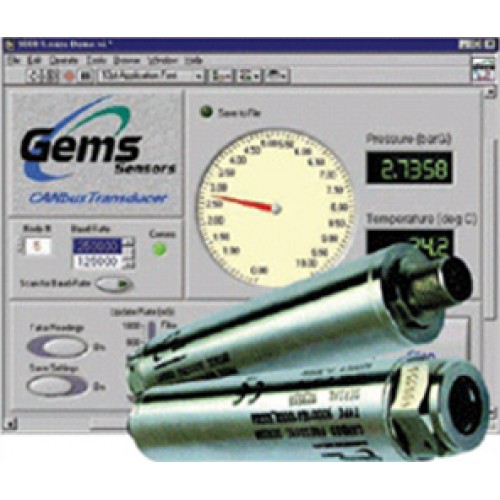

The 9000 Series CANbus pressure transducer meets the demands of the test and measurement industry, including automotive and marine applications, with high levels of accuracy over a wide temperature range. The digital output in engineering units eliminates the need for user system calibration.
Designed to have a wide input voltage range, input to output isolation, immunity to noise and self-diagnostics the 9000 is ideal for electrically noisy environments or applications where earthing or grounding can be a problem.
Through the standard CANopen protocol multiple devices can be used on a single bus reducing user cabling.
- High Accuracy Over Wide Operating Temperature Range T.E.B. ±0.2% Span
- -40°F to 185°F (-40°C to +85°C)
- Excellent Long Term Stability <0.05% Per Year, Non-Cumulative
- Small Size: 1" Diameter, .60" Length (25mm Diameter, 120mm Length)
- Isolated High Speed CAN Interface - ISO11898
- Programmable Update Rate
- Standard Application Interface - CANopen DS301 & DSP404
- In System Programmable
- Self Diagnostics - Bridge Fault Detection, Hours in Service, Watchdog, Last Calibration Date, Next Calibration Date
- Unsurpassed Customer Support - Rapid Development Kit
Speciication
Input
Pressure Range 0 to 1 - 0 to 690 bar
Proof Pressure 2 x FS (Inconel 1.5 x F.S.)
Burst Pressure >35 x FS for ranges!ü 87 psi (6 bar
>15 x FS for ranges 1450 psi (100 bar)
>4 x FS for ranges 10007 psi (690 bar)
Supply Voltage 7-30 VDC
Performance
Long Term Stability Zero drift <0.05% Full range output non cumulative
Accuracy !à 0.1% Full Scal
Total Error Band !à 0.2% Full Scal
Compensated Temperature -40!aF to +185!aF (-40!aC to +85
Operating Temperature -40!aF to +185!aF (-40!aC to +85
Mechanical Coniguration
Pressure Port (see table on next page)
Wetted Parts 17-4 PH or Inconel
Electrical Connection 5 pin M12 x 1, cable to IP68, others on request
Enclosure SS
Vibration <0.08% FRO/g 20Hz to 2000Hz, 35g
Shock Withstands free fall to IEC 68-2-32 procedure 1
Approvals CE Emissions EN 61000-6-4, Immunity EN 61000-6-2
Weight <180 grams
