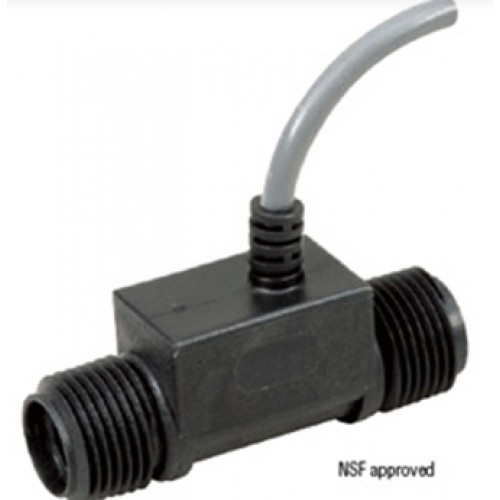

Gems FT-330 Series Turbine Electronic Flow Sensor

 High Accuracy: !à2% of readin
 High repeatability: !à0.5% of readin
 Overmolded electronics with integral cable strain reinforcement
 Measures low rates from .2 to 4 GPM
 Lightweight plastic design for multiple mounting positions
The FT-330 is a highly accurate and repeatable, Hall Effect turbine low sensor designed for low low OEM applications. This low cost, NSF Std. 61 listed low sensor is ideal for water or beverage dispensing applications or any application with water based liquids. The 316SS shaft coupled with Delrin  bearings allows for accurate
measurements during quick dispensing cycles. The sensor!ˉs standard power and output speciications make it easy to retroit existing controllers.
Speciications
Materials
 Body  Glass Reinforced PPO (Noryl)
 Turbine   PA Composite (Nylon)
 Axle   316 Stainless Steel
 Bearings  Delrin  (Polyoxymethylyne, POM)
Inlet/Outlet Ports   3/8 NPT Male
Pressure
 Operating  200 PSIG
 Burst    1000 PSIG
Operating Temperature  -4!aF to 176!aF (-20!aC to 80
Viscosity  32 to 81 SSU (1.8 to 16 Centistokes)
Recommended Filtration  < 50 Microns
Input Power  5 to 24 VDC @ 8mA
Output (Hz)  NPN Sinking Open Collector @ 25mA
      Maximum leakage current 10|ìA
      (5k to 30k Pull-Up Resistor Required)
Accuracy  !à2% of readin
Repeatability  !à0.5% of readin
Electrical Connection  3 ft PVC cable #22 AWG
Approvals  NSF Std. 61 listed, RoHS
