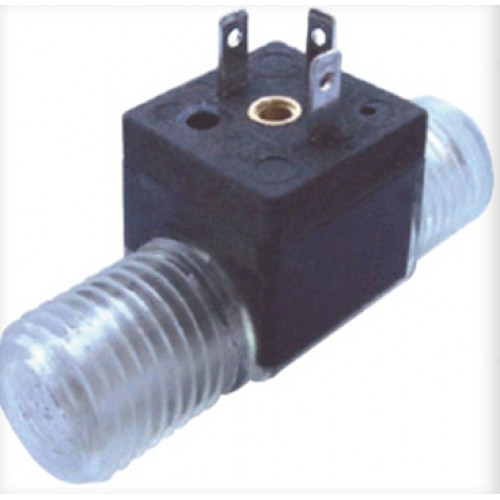

Gems FT-210 Series Turbine Electronic Flow Sensor

 Low Flow Rates .1 to 2.5 LPM and High Accuracy !à3% of Readin
 Lightweight Turbine Ensures Fast Startup
 Mounts In Any Orientation
Gems FT-210 features proven turbine technology in a small package for low flow applications. The turbine technology provides a highly repeatable sensor ideally suited for measurement of either volume dispensing and/or low rate applications. The small turbine reacts quickly to on/off dispensing applications. Each sensor is 100% tested, ensuring years of service life.
Speciications
Wetted Materials
 Body  Nylon 12 (Grilamid TR55)
 Turbine   Nylon 12 Composite
 Bearings  PTFE/15% Graphite
Operating Pressure  350 PSI (24 bar)
Burst Pressure  1400 PSI (97 bar)
Flow Range  .026-.65 gallons/minute
      0.1-2.5 liters/minute
      3.4-84.5 ounces/minute
Pulses  83,200 per gallon
      22,000 per liter
      650 per ounce
Frequency Output  36.6-917 Hz
Operating Temperature  -4!aF to 212!aF (-20!aC to 100
Viscosity  32 to 70 SSU (.8 to 16 Centistokes)
Filter   <50 Microns
Input Power  5 to 24 VDC
Output (Hz)  NPN Sinking Open Collector @ 20mA Maximum Leakage
      Current 10|A (3K-30K Pull up resistor required)
Accuracy  !à3% of Readin
Repeatability  0.5% of Full Scale
Electrical Connection  9.4mm Spacing 3-pole DIN Connector (1 high)
Inlet/Outlet Ports  1/4 NPT (1/4? G Male also available)
