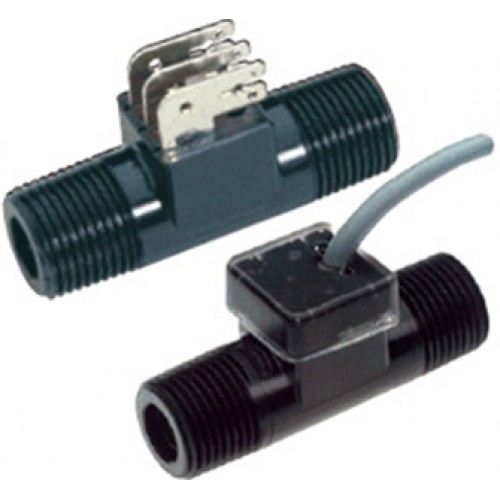

Gems FT-110 Series Turbine Electronic Flow Sensor

FT-110 Series ¨C TurboFlow Economical Flow-Rate Sensors
 Low Cost Plus High Accuracy !à3% of Readin
 Measures Low Liquid Flow Rates of .1 to 8 GPM
 Lightweight Plastic Design Enables Mounting in any Position
Gems Hall Effect turbine low rate sensor is ideal for OEM applications involving low flow liquid monitoring. The low cost coupled with 1/2% repeatability makes it an idealcandidate for replacing dispensing timer systems. Unlike existing timing systems, turbine technology is not inluenced by changes in system pressure caused by agingilters. The sensor!ˉs standard power and output speciications make it easy to retroit texisting controllers.
Speciications
Wetted Materials
 Body  Nylon 12
 Turbine   Nylon 12 Composite
 Bearings  PTFE/15% Graphite
Operating Pressure  200 PSIG
Burst Pressure  2500 PSIG
Operating Temperature  -4!aF to 212!aF (-20!aC to 100
Viscosity  32 to 81 SSU (.8 to 16 Centistokes)
Filter  <50 Microns
Input Power  5 to 24 VDC @ 8mA
Output (Hz)  NPN Sinking Open Collector @ 20mA Maximum
   Leakage Current 10|ìA (Pull-Up Resistor Required)
Accuracy  !à3% of Readin
Repeatability  0.5% of Full Scale
Electrical Connection  Spade Terminals .110?/.248? x .031?
   (2.8/6.3 x .8 mm) or 3 ft. cable
Inlet/Outlet Ports  3/8 NPT Male (3/8? G Male also available)
