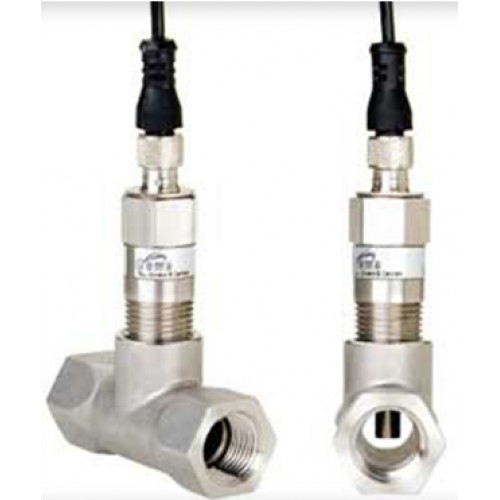

Gems FS-600 - No-Moving-Parts Flow Switch

FS-600 Series ¨C No Moving Part, Thermal Dispersion Flow Switch
Flow Rate Settings: 0.1 GPM to 11 GPM (0.5 LPM to 41 LPM)
Port Size: 1/2 to 1-1/2 (NPT or G thread)
Setting Type: Fixed
The FS-600 series uses proven thermal dispersion technology to provide a robust no moving part low switch even without iltration. The solid state sensor is compatible with both conductive and non-conductive luids. Suitable for luids with particulates or slurries, and is immune to changes in media viscosity. The straight through switch is designed for a long life and can be mounted in any orientation and can handle a wide range of low rates. No moving parts means years of reliable service.
Speciications
Wetted Materials
 Probe     303 Stainless Steel
 Flow Body     316 Stainless Steel
Operating Pressure (Max.)     363 PSIG (25 bar)
Operating Temperature     -14!a F to 140!aF (-10!aC to 60
Power on Delay Time     15 Seconds Max (Output On)
Response Time     10 Seconds Max.
Inlet/Outlet Ports     1/2, 3/4, 1, 1-1/2 NPT
         1/2, 3/4, 1, 1-1/2 G Internal
Operating Voltage     24 Vdc or 24Vac +/- 15%
Current Consumption     Less than 50mA
Switch Contact Rating      42Vdc @65mA
Switch Logic     Normally Open
Ingress Protection     IP65
Set point Accuracy     15%
Set point Differential     20% (Max.)
Electrical Termination     M12 x 1 (4-Pin) (1 meter cable included)
Approvals     CE, RoHS
