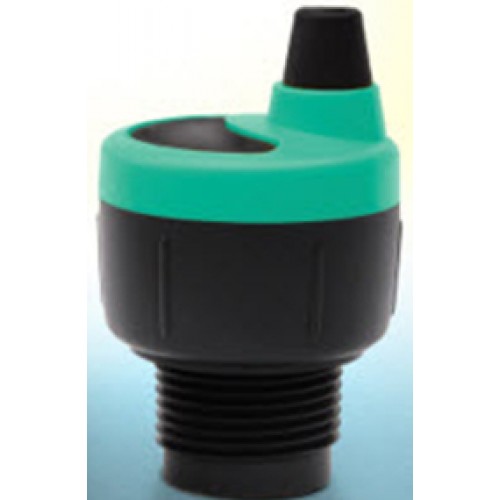

Gems Qwik Ship Level Sensors UCL-510 Continuous Ultrasonic Transmitter
Gems offers innovative, non-contact ultrasonic level sensors with no moving parts built for challenging fluid measurement. These accurate and reliable sensors are easy to install in applications with limited mounting options and space.
| Supply Voltage | 24 VDC |
| Range | 2" to 49.2" |
| Accuracy | 0.125" |
| Resolution | 0.019" |
| Beam Width | 2" |
| Dead Band | 2" |
| Maximum Loot Resistance | 400 Ohms |
| Power Consumption | 0.5 Watts |
| Signal Output | 4-20 ma |
| Loop Fail Safe | 4 mA, 20mA, 21 mA, 22 mA, or hold last |
| Hysteresis | Selectable |
| Temperature Compensation | Automatic over Range |
| Minimum Process Temperature (°F) | 20 |
| Maximum Process Temperature (°F) | 140.000 |
| Minimum Ambient Temperature (°F) | -31 |
| Maximum Ambient Temperatur (°F) | 140.000 |
| Pressure | 30 PSI |
| Enclosure | Type 6P encapsulated, Corrosion Resistant and Submersible |
| Materials of Construction | PX/ABS FR, PVDF, Santoprene, Viton |
| Process Conneciton | 1" NPT |
| Electrical Connection | 48" Polyethylene Cable |
| Approvals | CE, cFMus |
| Weight (Lbs) | 0.8 |
