Gems Fluid Level Sensors & Control Switches warrick conductivity sensors Series M - Mechanical Tilt Level Sensor

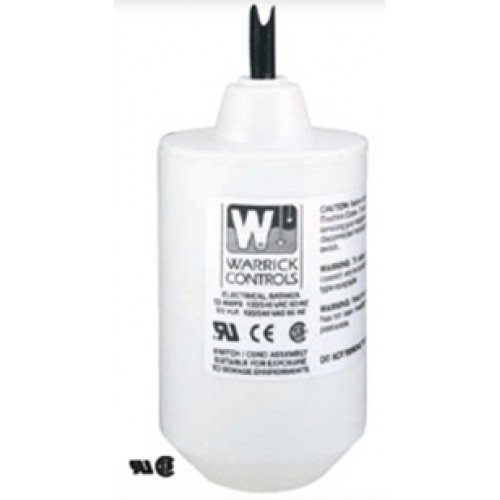

Series M-Mechanical Tilt Float Level Switch Non-Mercury Switch Sealed Cable Impact & Corrosion Resistant ABS Shell N.O., N.C., SPDT Contacts Various Cable Lengths Color Coded Body. Designed for level control and alarm applications in dificult liquids such as sewage and waste water. Series M mechanical tilt loats are ideal for applications where the presence of mercury is a concern. Series M, Switches have impact resistant ABS shell and neoprene jacketed cable.
Speciications
Cord  2 or 3 conductor 16 AWG wire SJOW Oil Resistant CPE
Contact Rating  13 amp @ 120/240 VAC 1/2 hp
Contact Design  SPST, Normally Open or Normally Closed
      Common with N.O. & N.C. (form C)
Temperature Rating
 Dry  32!aF to 194!aF (0!aC to 90
 Water Resistant  32!aF to 140!aF (0!aC to 60
Overall Weight  1.0 lbs. (not including weight)
Tether Method  Tie-wrap nylon, weight: 2.5 lbs.
Approvals  U.L. Recognized, CSA Cert.

Applications

• Level Control
• Alarms
• Sewage Lift Systems
• Slurries
• Drainage Sumps
• Wastewater Treatement
• Holding Tanks
