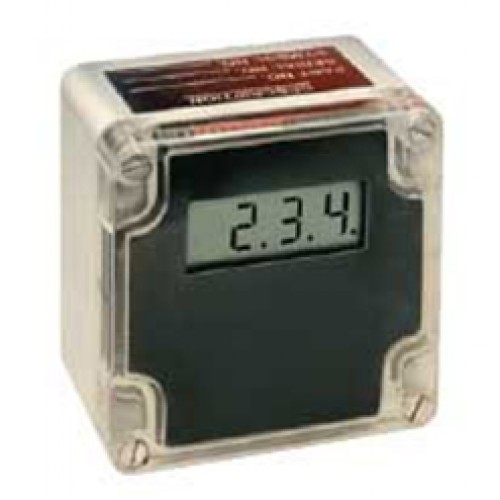

Gems 3-Digit Level Cube Receiver Visual Level Indicators
- Easy to Adjust and Calibrate
- Compact and Low Cost
- Plainly Visible Readout
These compact, low-cost Level Cubes provide accurate, continuous 3-digit readout of liquid level. The indicating range and decimal point location on the display are quickly and easily selectable with the readout plainly visible.
Gems™ Receivers house a numerical digital readout, and all of the calibration adjustments for a complete Continuous Level indication system. Those receivers designed for the XM-Series transmitters also include a power supply for the transmitter.
3-Digit Level Cube Receivers
For use with GEMS Transmitters and SureSite Transmitters.These compact, low-cost Level Cubes provide accurate, continuous 3-digit readout of
liquid level. The indicating range and decimal point location on the display are quickly and easily selectable with the readout plainly visible. 3 Power Choices with NPT or Cable Mounted 9-V Battery Powered 9 VDC/117 VAC Powered Solar-Powered
GEMS GEMS
SOLAR CELL 2
AC ADAPTER
Part Numbers: Part Numbers: Part Numbers:
118600 !aCable Outpu 118620!aCable Outpu 118610!aCable Outpu
119250!a1/2? NP 119270!a1/2? NP 119260!a1/2? NP
Notes:
1. 9-V Alkaline Battery Powered Units: Two batteries (supplied) are snapped into terminals in Cube.
On/Off switch available
2. 9 VDC/117 VAC Powered Units: Power is supplied from AC adapter. A plug, Part Number 119218, is available for use where 7-VDC power is supplied by customer. These units are not watertight.
3. Solar-Powered Units: Sunlight or a lashlight beam directed on a solar cell in the front cover is all that!ˉs needed to operate.
Speciications
Housing Material Polycarbonate, NEMA-4X, watertight*
Cable Distance from Transmitter 100 feet, Max.
Operating Temperature +23!aF to 131!aF (-5!aC to +55
Accuracy !à 2
*Except for 9 VDC/117 VAC Powered Units which are not watertight.
How To Order ¨C Standard Model
Style Mounting Part Number
Cable Output
118600
9-V Battery
1/2? NPT
119250
Cable Output
118620
9 VDC / 117 VAC
1/2? NPT
119270
Cable Output
118610
Solar
1/2? NPT
119260
