Gems 163000 Series Visual Level Indicators

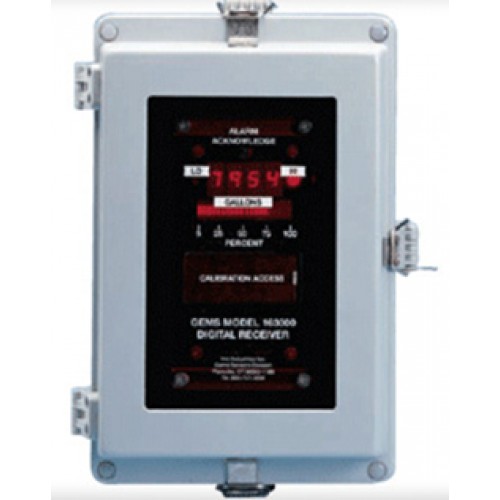

Digital Bargraph Display Receivers -163000 Series
Gems Digital Bargraph Receivers improve the way you are able to visualize the data being received from your liquid level transmitters. These new receivers display liquid level information in digital numerals in conjunction with a 0-100% LED bargraph readout. The numeric portion is a 1/2? 4-digit display that provides detailed quantiication of tank contents, while the bright LED bargraph represents the tank contents as a bar length relative to the percentage of luid volume within the tank. If you have a non-linear tank, such as a sphere or a cylinder laying on its side, these receivers are a blessing. They can be calibrated easily so that the digital and bargraph displays will indicate accurate content information for !°odd!± shape tanks. Se
!°Linearization!± belo
In addition to the dual visual displays, the Gems Bargraph Receiver features two independent alarms with adjustable time delays, 10 amp auxiliary dry contacts and easy user set-up. The receiver is available in component form for mounting into custom enclosures or panels, or housed within a NEMA 4X enclosure.
Linearization
Certain tanks, like a sphere or a cylinder laying on its side, are considered !°Non Linear!± in terms of volume versus tank height. In these cases this receiver may be linearized according to your tank parameters so that the correct volume is displayed. Any units may be displayed by the receiver. Gallons, inches, tons, cubic inches, liters and etc.
The receiver uses a scheme where 9 points or 8 straight lines are used to calculate the numbers to be displayed. These 8 lines approximate the curve of the non-linear tank.
Examples of Non-Linear Display Values.
1.Gallons in a spherical tank.
2.Gallons in a cylindrical tank laying down.
3.Pounds of liquid in a spherical tank.
4.Cubic meters in a conical shaped tank.
5.Gallons in a non-linear shaped tank.
IMPORTANT: Customer must supply a sounding table, capacity curve and/or tank
drawing for linearization of the digital bar graph display receiver.
Speciication
Input Signal 4-20mA, Proportional Voltage*, Serial
Accuracy Over Given Range !à 1.0
Operating Voltage 24VDC or 115VAC
Operating Temperature 32!aF to 122!aF (0!aC to 50
Alarm Contacts, Load 10Amp, Dry Contact
Digital Readout 0000 to 9999
Input/Output Signals Part Number
Input
NEMA 4X
Power
Input Output Panel Mount Fiberglass
Enclosed
Transmitter* None
170680-0100 170690-0100
Serial None
170681-0100 170691-0100
24 VDC Transmitter* 4-20mA
170682-0100 170692-0100
4-20mA
170683-0100 170693-0100
4-20mA
None
170684-0100 170694-0100
Transmitter* None
170685-0100 170695-0100
Serial None
170686-0100 170696-0100
Transmitter* 4-20mA
170687-0100 170697-0100
115 VAC
4-20mA
170688-0100 170698-0100
4-20mA
None
170689-0100 170699-0100
