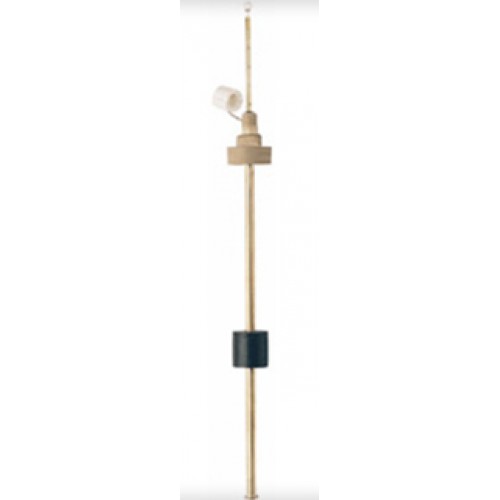

Gems Alloy DIPTAPE Visual Tank Level Indicators

DIPTAPE  Indicators ¨C Alloy Version Temperatures to 300!aF (148!a Pressures to 750 PSI (52 bar)
Rugged brass or stainless steel units are ideal for use in water and oils. Select these units for best temperature and pressure capabilities.

1. Mounting Types
!°B!± Dimensio (Length Overall): Indicating Length + A + C

Brass
316 Stainless Steel Stem
or
with Carbon Steel or
Stem and Mounting Material
316 Stainless Steel
316 Stainless Steel Flange
Indicating Length**
6" to 72" (15.2 cm to 182.9 cm)
Std. Indication Markings
1/16" or 1 mm increments

2. Float Types

Float Part Number
73710 73709 138935
Min. Liquid Speciic Gravity
0.45 0.67 0.67
Oil: -40!aF to +230!
-40!aF to +300! -40!aF to +220!
Operating Temperatures
(-40!aC to +110!a
(-40!aC to +148.8!a (-40!aC to +104!a
Water: to 180!aF (+82.2!a
750 psi (52 bar) Mounting Type 3
Operating Pressure, Max.
300 psi (21 bar) max. @ 77!aF (25!a 150 psi (10 bar)
150 psi (10 bar) Mounting Type 4
!°A!± Dimension (From Mounting Type
1-1/4 (31.7 mm) 1-3/8 (34.9 mm) 1(25.4 mm)
!°C!± Dimension (From Mounting Type
11/16 (17.5 mm) 3/4 (19.05 mm) 9/16 (14.3 mm)
