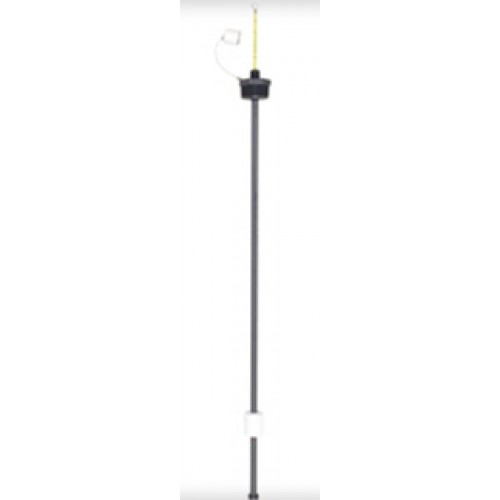

Gems PVC DIPTAPE Visual Level Indicators

All-PVC Versions Are Economical for Light Duty Temperatures to 140!aF (60!a Pressures to 15 PSI (1 bar) Max. Ideal for chemical storage tanks, our all-PVC DIPTAPE Indicators provide one of your best values for liquid level monitoring. These light duty versions are recommended for use in calm liquids and ambient temperature and pressure levels. See Engineered Plastic versions on the next page for enhanced performance characteristics.

1. Mounting Types
!°B!± Dimension (Length Overall) Indicating Length +1-7/8? (47.6 mm)

Stem, Float and Mounting Material
PVC
Min. Liquid Specific Gravity
0.65
Operating Temperatures
0!aF to +140!aF (-17.7!aC to 60
Operating Pressure, Max.
15 psi (1 bar)
Indicating Length*
6" to 72" (15.2 cm to 182.9 cm)
Std. Indication Markings
1/16" or 1 mm increments
