Gems Fluid Level Sensors & Control Switches CVD Sensing Pressure Transducer 2200/2600 Series

2200 Series / 2600 Series ¨C
General Purpose

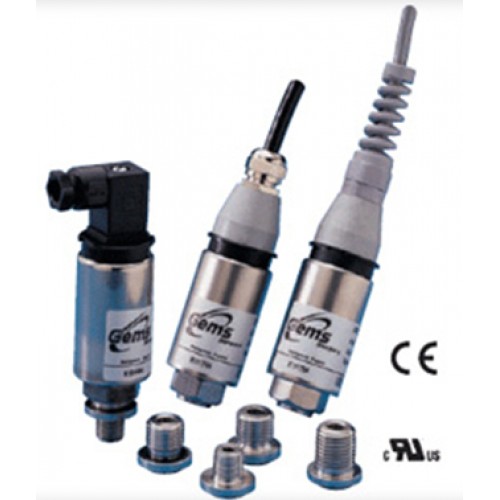

Industrial Pressure Transducers Gauge, Absolute, Vacuum and Compound Pressure Models. Available Submersible, General Purpose and Wash Down Enclosures High Stability Achieved by CVD Sensing Element Millivolt, Voltage and Current Output Models. The 2200 series features stability and accuracy in a variety of enclosure options. The 2600 series extends the packaging options via an all welded stainless steel back end for demanding submersible and industrial applications. The 2200 and the 2600 feature proven CVD sensing technology, an ASIC (ampliied units), and modular packaging to provide a sensor line that can easily accommodate specials while not sacriicing high performance.
Speciications
Input
 Pressure Range  Vacuum to 6000 psi (400 bar)
 Proof Pressure  2 x Full Scale (FS) (1.5 x Fs for 400 bar,  5000 psi)
 Burst Pressure  >35 x FS <= 100 psi (6 bar);
      >20 x FS >= 1000 psi (60 bar);
      >5 x FS <= 6000 psi (400 bar)
 Fatigue Life  Designed for more than 100 million FS cycles
Performance
 Long Term Drift  0.2% FS/year (non-cumulative)
 Accuracy  0.25 % FS typical (optional 0.15% FS)
 Thermal Error  1.5% FS typical (optional 1% FS)
 Compensated Temperatures  -5!aF to +180!aF (-20!aC to +80
 Operating Temperatures  -40!aF to +260!aF (-40!aC to +125!aC) for elec. codes A, B,
      -5!aF to +180!aF (-20!aC to +80!aC) for elec. codes 2, D,
      -5!aF to +125!aF (-20!aC to +50!aC) for elec. codes F,
      Ampliied units >100!aC maximum 24 VDC suppl
 Zero Tolerance  1% of span
 Span Tolerance  1% of span
 Response Time  0.5 ms
Mechanical Coniguration
 Pressure Port  See ordering chart
 Wetted Parts  17-4 PH Stainless Steel
 Electrical Connection  See ordering chart
 Enclosure  316 ss, 17-4 PH ss
      IP65 NEMA 4 for elec. codes A, B, C, D, G,1, 2, 3
      IP67 for elec. code !°F
      IP68 for elec. codes M, (max depth 200 meters H O)
2
      IP30 for elec. code !°3!± with lying lea
 Vibration  70g, peak to peak sinusoidal, 5 to 2000 Hz
      (Random Vibration: 20 to 2000 Hz @ 20g Peak
      per MIL-STD.-810E Method 514.4)
 Acceleration  100g steady acceleration in any direction 0.032% FS/g
      for 15 psi (1 bar) range decreasing logarithmically
      to 0.0007% FS/g for 6000 psi (400 bar) range.
 Shock  20g, 11 ms, per MIL-STD.-810E Method 516.4 Procedure I
 Approvals  CE, UR (22ET, 26ET Intrinsically Safe)
 Weight  Approx. 100 grams (additional cable; 75 g/m)
