Gems Multi-Point Float Level Switches
Gems™ custom length float level switches are extremely versatile. Custom length levels can be configured with "up to seven" independent switch actuation levels, depending on the series type. These "multi-station" units offer the most practical way to monitor multiple liquid level points within a single tank. Only a single entry point into the tank is required, and all electrical wiring emanates from a single source. In addition to tracking changing level points of a single liquid within a tank, "multi-station" float level switches are ideal for monitoring liquid interfaces and emulsions in vessels simultaneously containing two or more liquids. Contact Gems with your liquid specifications for further information on this type of application.
The durable construction of these reed switch designs ensures long, trouble-free service. Because the effects of shock, wear and vibration are minimized, these hermetically sealed switches provide precise repeatability with no more than 1% deviation. The switch actuation points remain constant over the life of the unit.
Typical Applications
Liquid Interface Monitoring
Reed Switch Protection

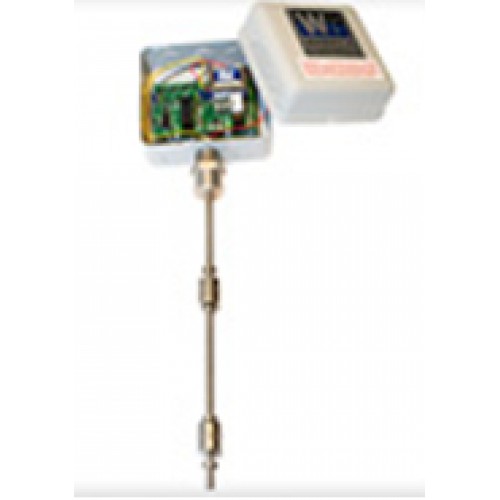

LWC-720 Series Low Level Cut Off with Pump Control
- Internal Mounting
- Includes Pump Control Switch, Logic and Relay
- Meets CSD1 Requirements
- U.L. Recognized "Limit Control"
- Compact Size
- Options Include: Manual Reset, Power Outage Feature, and Test Feature
LS-350 Series Multi-Point Level Switch
- Up to 4 Actuation Levels
- Integral Siphon or Fill Tube
- Customized Mountings
- Custom Configurable
LS-300TFE Series Multi-Point Level Switch
- Low Particle Generation-One piece Molded Design
- Corrosion Resistant
- 1 to 4 Actuation Levels in a Single Unit
- Lengths to 24" (610 mm)
LS-300 Series Multi-Point Level Switch
- All-Plastic Wetted Parts
- 1 to 4 Actuation Levels
- Lengths to 20" (508 mm)
- U.L. Recognized; CSA Listed Versions Available
LS-700 Series Multi-Point Level Switch
- Stainless Steel or Brass Mountings and Stems
- 1 to 5 Actuation Levels
- Lengths to 48 Inches (1219 mm)
- U.L. Recognized; CSA Listed Versions Available
LS-700 Series Multi-Point Level Switch
- Stainless Steel or Brass Mountings and Stems
- 1 to 5 Actuation Levels
- Lengths to 48 Inches (1219 mm)
- U.L. Recognized; CSA Listed Versions Available
