Gems Single Point Level Switches Water in Fuel Level Indicator (WIF-1250)
- Designed for OHV and Generator Set applications
- Compact size, easy to install
- Operates in plastic or metal tanks
- Reliable and affordable OEM solution
- Solid-State – no moving parts

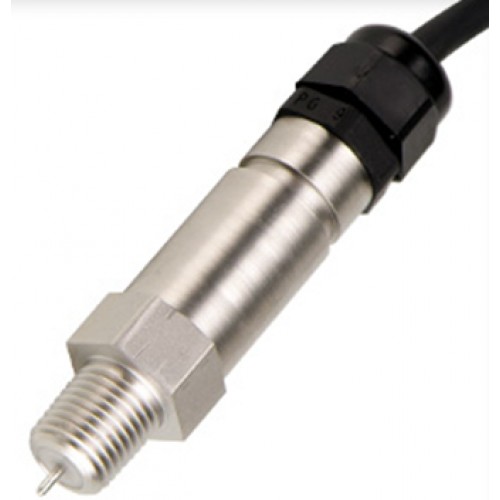

The WIF-1250 sensor is an innovative, no-moving-parts solution specifically designed to detect the presence of water in fuel. The sensor is an ideal solution for OEM’s of off-highway vehicles, locomotive and generator sets. It is also ideal for use with fuel filters. Based on reliable conductivity technology, WIF-1250 sensors are built from robust nickel plated steel for compatibility with temperatures up to 257°F (125°C), and are suited for the most challenging environments or applications. A 5-second delay circuit prevents "slosh" actuation. The sensor is easily mounted in any position.
Applications:
To detect water in:
- Fuel filters
- Diesel fuel storage tanks
Speciications
Housing Materials Nickel plated steel, electrolytic nickel plated & fused glass
conductivity pin insulator
Sensing Element Length 0.2? (5.1 mm)
Operating Pressure 750 PSI (51.7 bar) @ 70!aF (21!a
Operating Temperature -40!aF to 257!aF (-40!aC to 125
Sensitivity 10,000 Ohms (luid resistance)
Slosh Dampening 5 seconds
Supply Voltage 8 to 32 V DC
Output Open collector, sinking output
Output Load Capability 250 mA max.
Electrical Connection 20 AWG 3-Conductor Cable, 15? (381 mm)
Approvals CE
Probe Condition at Current Sink M12x1.5
Wet
238737 238856
Dry
238773 238855
