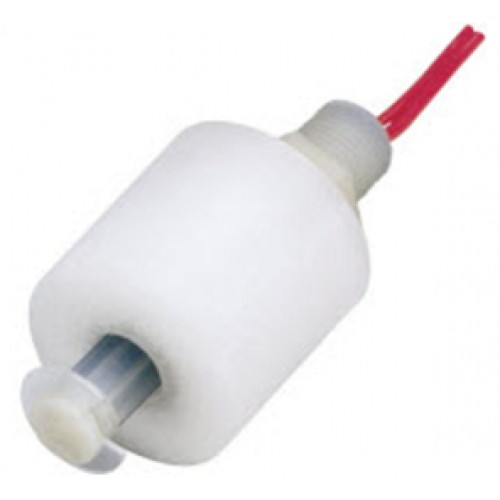

Gems Single Point Electro-Optic Level Switches LS-3 Series

Gems Single Point Electro-Optic Level Switches LS-3 Series
Actuation Level 9/16"
Switch Operation Normally Open (Reversible)
Min. Liquid 0.90
Stem Material Polypropylene
Float Material Polypropylene (Solid)
Float Diameter 1"
Mounting Size 1/8" NPT Male
Mounting Vertical
Switch Type SPST (20 VA)
Input N/A
Output N/A
Maximum Pressure (PSI) 150
Minimum Temperature (°F) -40
Maximum Temperature (°F) 150
Electrical Termination 22 AWG, 24" long PVC leads
Wetted Materials Polypropylene, Kynar
Approvals UL Recognized, CSA Listed, CE
Minimum Qty (per Release) 1
Weight (LBS) 0.125
Protection Non-Intrinsically Safe
Operating Voltage (Volts) 115 VAC
Turn-Off Sensitivity (OHMS) N/A
Maximum Input DC Voltage N/A
Maximum Input Current N/A
Series Resistance N/A
Load Current 5 Amps
Load Voltage 115 VAC
Capacitance (micro Farads) N/A
Inductance (milli Henry) N/A
Minimum Temperature (°F) -13
Maximum Temperature (°F) 158
Alternate Stock Item
Minimum Qty (per Release)

1



Part Number   Stem Material Float Material Mounting Size Switch Type
116826   Polypropylene Polypropylene (Solid) 1/8" NPT Male SPST (20 VA)
131100   Polypropylene Polypropylene 1/2" NPT Male SPST (20 VA) Switch determined by mounting orientation
133299   Teflon Teflon 1/4" NPT Male SPDT (20 VA)
138167   Polysulfone N/A 1/4" NPT Male TTL/CMOS Compatible Wet Sink
140620   Nylon Nylon 1/2" NPT Male SPST (20 VA) Switch determined by mounting orientation
142505   Polypropylene Polypropylene (Hollow) 1/8" NPT Male SPST (20 VA)
142545 Includes Polypropylene Slosh Shield Polypropylene Polypropylene (Solid) 1/8" NPT Male SPST (20 VA)
142700   Polysulfone N/A 1/4" NPT Male TTL/CMOS Compatible Wet Sink
143570   Polysulfone N/A 1/4" NPT Male TTL/CMOS Compatible Dry Sink
143575   Polysulfone N/A 1/2" Straight thread TTL/CMOS Compatible DrySink
143577   Polysulfone N/A "Fish" Pll Ring TTL/CMOS Compatible Wet Sink
143580   Polysulfone N/A 1/2" Straight thread TTL/CMOS Compatible Wet Sink
143585 3/8" Conduit Connection Polysulfone N/A 1/4" NPT Male TTL/CMOS Compatible Wet Sink
143590 3/8" Conduit Connection Polysulfone N/A 1/4" NPT Male TTL/CMOS Compatible Dry Sink
144225 3/8" Conduit Connection Polysulfone N/A 1/4" NPT Male TTL/CMOS Compatible Wet Sink
144235   Polysulfone N/A 1/2" Straight thread TTL/CMOS Compatible Wet Sink
148973   Polysulfone N/A "Fish" Pll Ring TTL/CMOS Compatible Dry Sink
153061   IspoPlast N/A 3/8" NPT Male TTL/CMOS Compatible Wet Sink
153062   IspoPlast N/A 3/8" NPT Male TTL/CMOS Compatible Dry Sink
153063   IspoPlast N/A 3/8" NPT Male TTL/CMOS Compatible Wet Sink
153064   IspoPlast N/A 3/8" NPT Male TTL/CMOS Compatible Dry Sink
157750 3/8" Conduit Connection Nylon N/A 1/4" NPT Male TTL/CMOS Compatible Wet Sink
160450 1/2" NPT Conduit Connection Polypropylene Polypropylene 1/2" NPT Male SPST (20 VA) Switch determined by mounting orientation
160460 1/2" NPT Conduit Connection Nylon Nylon 1/2" NPT Male SPST (20 VA) Switch determined by mounting orientation
162745   Nylon Buna 1/8" NPT Male SPST (20 VA)
164520 Internal mounting secured with locking nut Polypropylene Polypropylene Internal SPST (20 VA) Switch determined by mounting orientation
165570 Internal mounting secured with locking nut Nylon Nylon Internal SPST (20 VA) Switch determined by mounting orientation
165800 Externally mounts through and seals non-threaded holes using a HNBR compression gasket Polypropylene Polypropylene Internal SPST (20 VA) Switch determined by mounting orientation
165900 Externally mounts through and seals non-threaded holes using a HNBR compression gasket Nylon Nylon Internal SPST (20 VA) Switch determined by mounting orientation
166541   Polysulfone N/A M12x8g Straight Thread TTL/CMOS Compatible Wet Sink
169555   Polysulfone N/A M12x8g Straight Thread TTL/CMOS Compatible Wet Sink
169556   Polysulfone N/A M12x8g Straight Thread TTL/CMOS Compatible Dry Sink
171514   Polypropylene Polypropylene (Solid) 3/8"-16 SPST (20 VA)
171517   Polypropylene Polypropylene (Hollow) 3/8"-16 SPST (20 VA)
171518   Polypropylene Polypropylene (Hollow) G 18"-28 SPST (20 VA)
173250   PVDF PVDF 1/8" NPT Male SPST (20 VA)
173700 3/8" Conduit Connection Teflon N/A 1/4" NPT Male TTL/CMOS Compatible DrySink
173800 3/8" Conduit Connection Teflon N/A 1/4" NPT Male TTL/CMOS Compatible Wet Sink
174100   Teflon Teflon 1/8" NPT Male SPST (20 VA)
174200   Teflon Teflon 1/8" NPT Male SPST (20 VA)
175631 3/8" Conduit Connection Nylon N/A 1/4" NPT Male TTL/CMOS Compatible Wet Sink
175632 3/8" Conduit Connection Nylon N/A 1/4" NPT Male TTL/CMOS Compatible Dry Sink
177100   Versaplast Versaplast 1/2" NPT Male SPST (20 VA) Switch determined by mounting orientation
177818   Nylon Buna 1/8" NPT Male SPST (20 VA)
181291   Polypropylene Polypropylene 1/2" NPT Male SPDT (10 Watt Minimum)
181674   IspoPlast N/A 3/8" NPT Male TTL/CMOS Compatible Wet Sink
181675   IspoPlast N/A 3/8" NPT Male TTL/CMOS Compatible Dry Sink
182600   Versaplast Versaplast Internal SPST (20 VA) Switch determined by mounting orientation
185600 Includes Hypalon Boot Cable Seal Teflon N/A 1/4" NPT Male TTL/CMOS Compatible Dry Sink
187575 Maximum Wall Thickness is 1/4" Polysulfone N/A 3/4" Flange TTL/CMOS Compatible Wet Sink
187580 Maximum Wall Thickness is 1/4" Polysulfone N/A 3/4" Flange TTL/CMOS Compatible Dry Sink
187585 Maximum Wall Thickness is 1/4" Polysulfone N/A 3/4" Flange TTL/CMOS Compatible Wet Sink
187590 Maximum Wall Thickness is 1/4" Polysulfone N/A 3/4" Flange TTL/CMOS Compatible Dry Sink
187595 Includes Hypalon Boot Cable Seal Teflon N/A 1/4" NPT Male TTL/CMOS Compatible Wet Sink
189422   Versaplast Versaplast 1/2" BSP Male SPST (20 VA) Switch determined by mounting orientation
189739   Polypropylene Polypropylene (Hollow) M12x1.75 SPST (20 VA)
189786   Nylon Buna M12x1.75 SPST (20 VA)
189787   Polypropylene Polypropylene (Solid) M12x1.75 SPST (20 VA)
191080 Internal mounting secured with locking nut Noryl Noryl Internal SPST (20 VA) Switch determined by mounting orientation
191341   IspoPlast N/A M16x2 TTL/CMOS Compatible Wet Sink
191342   IspoPlast N/A M16x2 TTL/CMOS Compatible Dry Sink
197050 Internal mounting secured with jam nut Polypropylene Polypropylene Internal SPST (20 VA) Switch determined by mounting orientation
201540   Polypropylene Polypropylene (Solid) 1/8" NPT Male SPST (20 VA)
209455   Polypropylene Polypropylene (Hollow) 3/8"-16 SPST (20 VA)
209460   Polypropylene Polypropylene (Hollow) G 1/8"-28 SPST (20 VA)
209465   Polypropylene Polypropylene (Hollow) M12x1.75 SPST (20 VA)
209475   Polypropylene Polypropylene (Hollow) 1/8" NPT Male SPST (20 VA)
223625   Polysulfone N/A 1/2"-20UNF-2B TTL/CMOS Compatible Wet Sink
224501   Polysulfone N/A 1/2"-20UNF-2B TTL/CMOS Compatible Wet Sink
224502   Polysulfone N/A 1/2"-20UNF-2B TTL/CMOS Compatible Dry Sink
224503   Polysulfone N/A 1/2"-20UNF-2B TTL/CMOS Compatible Wet Sink
224504   Polysulfone N/A 1/4" NPT Male TTL/CMOS Compatible Wet Sink
224505   Polysulfone N/A 1/4" NPT Male TTL/CMOS Compatible Dry Sink
224506   Polysulfone N/A 1/4" NPT Male TTL/CMOS Compatible Wet Sink
224507   Polysulfone N/A 1/4" NPT Male TTL/CMOS Compatible Dry Sink
224508   Polysulfone N/A M12x1-8 TTL/CMOS Compatible Wet Sink
224509   Polysulfone N/A M12x1-8 TTL/CMOS Compatible Dry Sink
224510   Polysulfone N/A M12x1-8 TTL/CMOS Compatible Wet Sink
224511   Polysulfone N/A M12x1-8 TTL/CMOS Compatible Dry Sink
226541   Polysulfone N/A 1/2"-20UNF-2B TTL/CMOS Compatible Wet Sink
226542   Polysulfone N/A 1/2"-20UNF-2B TTL/CMOS Compatible Dry Sink
226543   Polysulfone N/A 1/2"-20UNF-2B TTL/CMOS Compatible Wet Sink
226544   Polysulfone N/A 1/2"-20UNF-2B TTL/CMOS Compatible Wet Sink
226545   Polysulfone N/A 1/4" NPT Male TTL/CMOS Compatible Wet Sink
226546   Polysulfone N/A 1/4" NPT Male TTL/CMOS Compatible Dry Sink
226547   Polysulfone N/A 1/4" NPT Male TTL/CMOS Compatible Wet Sink
226548   Polysulfone N/A 1/4" NPT Male TTL/CMOS Compatible Dry Sink
226549   Polysulfone N/A M12x1-8 TTL/CMOS Compatible Wet Sink
226550   Polysulfone N/A M12x1-8 TTL/CMOS Compatible Dry Sink
226551   Polysulfone N/A M12x1-8 TTL/CMOS Compatible Wet Sink
226552   Polysulfone N/A M12x1-8 TTL/CMOS Compatible Dry Sink
228830 Non-Water Based, Non-Conductive (shielded Sensor) Glass Filled Nylon N/A N/A D-type, Embeddable Switching Frequency = 100 HZ; Continuous Switching Current = 300mA; Voltage Drop < 2 VDC
229855 Non-Water Based, Non-Conductive (shielded Sensor) Glass Filled Nylon N/A N/A D-type, Embeddable Switching Frequency = 100 HZ;
