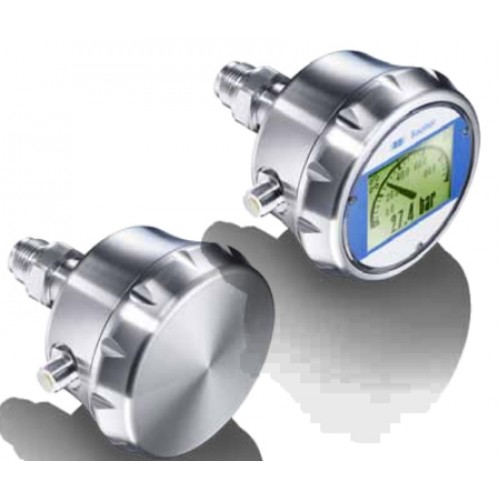

Baumer pressure transmitters Combipress ™ PFMN Industrial - fully welded pressure transmitter with flush diaphragm

Main characteristics (20C)
Measuring range -1.0 ... 400.0 bar
Minimum range 50 mbar
Turn down 10:1
Long term stability  <0.1% FS / Year
Standard process temperature  Silicon oil -40 C- 125 C
(<150C <60 min White oil -10 !- 125 !
(<150 !aC <60 min
Max. process temperature 200 !aC (with cooling neck
Measuring principle Piezoresistive silicon sensor
Measuring ranges -1 !- 0 bar up to 0 !- 400 ba
Min. range 0 !- 0.05 bar, programmabl
Type of pressure Relative / Absolute
Turn down 10:1 FS
Accuracy : 0,1%   up to 2:1 turn down (Linearity, Hysteresis, 0,25%  up to 4:1 turn  Repeatability) down

Main features
Flush diaphragm
Built in graphical display,CombiView TM DFON optional
HART
ATEX

Programmable by touch screen
Easy and full programmable
with FlexProgrammer 9701

Applications
Oil and Gas
Chemical
Energy
General process industry
