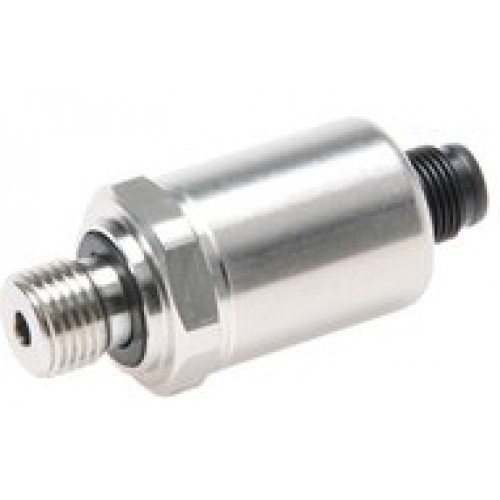

Huba Pressure sensor for shipbuilding 522

The compact type 522 pressure transmitter for shipbuilding is based upon the Huba Control developed thick film technology where the pressure measuring cell is fully welded. The pressure measuring cell incorporates a fully welded construction within the transducer housing. Highest requirements in various applications concerning burst can be met. All pressure transmitters of type 522 have the most important certifications for the shipbuilding industry.

Compact, rugged construction
Certified  for shipbuilding with:
 - Germanischer Lloyd
 - American Bureau of Shipping
 - Bureau Veritas
 - Det Norske Veritas
 - Lloyd`s Register

Pressure range
Relative     0 ... 2.5 ă 600 bar
Operating conditions
Medium     Liquids, gases and refrigerants (incl. ammonia)
Temperature
    Medium -40 ... +135 ÀC
    Ambient -30 ...   +85 ÀC
    Storage -50 ... +100 ÀC
Tolerable overload
   < 6 bar 5 x FS
    > 6 bar 3 x FS (max. 1500 bar)
Rupture pressure
   < 6 bar 10 x FS
    > 6 bar   6 x FS (max. 2500 bar)
Materials
Cover     Stainless steel 1.4404 / AISI 316L
Plug accommodation    Polyarylamide 50% GF V0
Materials in contact with medium
   Pressure connection Stainless steel 1.4404 / AISI 316L
    Sensor Stainless steel
Electrical overview
  Output Power supply Load Current consumption
2 wire  4 ... 20 mA   7 ... 33 VDC <
supply voltage - 7 V
 [Ohm] < 23 mA
2 wire (Ex)  4 ... 20 mA 10 ... 30 VDC <
supply voltage - 10 V
 [Ohm] < 23 mA
3 wire  0 ... 10 V 12 ... 33 VDC >10 kOhm / < 100 nF <   7 mA
Polarity reversal protection            Short circuit proof and protected against polarity reversal. Each connection is protected against crossover up to max. supply voltage.
Protection class
Protection class III
Dynamic response
Response time     < 2 ms, 1 ms typ.
Load cycle     < 100 Hz
Protection standard
Connector DIN EN 175301-803-A    IP 65
Swift connector, Connector M12x1    IP 67
Electrical connection
Swift connector with cable 1.5 m (PVC spec.)
Connector DIN EN 175301-803-A
Connector M12x1
Pressure connection
Inside thread

7
/16 - 20 UNF
    ½ - 14 NPT
Outside thread
7
/16 - 20 UNF
    ¼ -18 NPT
  G ¼  sealed at back DIN 3852 form E with Profile seal ring in FPM spec. (-30 ... +135 ÀC)
  G ½ sealed at back and manometer (combi) with Profile seal ring in FPM spec. (-30 ... +135 ÀC)
  M20x1.5
  G ½ sealed at front
Installation arrangement
Unrestricted
Tests / Admissions
Electromagnetic compatibility CE conformity acc. EN 61326-2-3
Shock acc. IEC IEC 68-2-27 100 g, 11 ms half sine wave, all 6 directions, free fall from 1 m on concrete (6x)
Constant shock acc. IEC 68-2-29  40 g for 6 ms, 1000x all 3 directions
Vibration acc. IEC 68-2-6 20 g, 15 ... 2000 Hz, 15 ... 25 Hz with amplitude μ 15 mm, 1 Octave/min. all 3 directions, 50 constant load
Shipbuilding
  Germanischer Lloyd
  American Bureau of Shipping
  Bureau Veritas
  Det Norske Veritas
  Lloyd`s Register
Protection against explosion
Intrinsic safety "i" (with current output only)
   Ex II 1/2 G Ex ia IIC T4 Ga/Gb
     Ex II 1/2 D Ex ia IIC T125ÀC Da/Db
EC type examination certificate    SEV 10 ATEX 0145
Connection to certified intrinsically safe resistive circuits with maximum values  Ui = 30 VDC; Ii = 100 mA = Pi = 0.75 W
Effective internal inductance and capacitance for versions with plugs complying with EN 175301-803-A or M12x1 Li = 0 nH; Ci = 0 nF
Weight
~ 90 g
