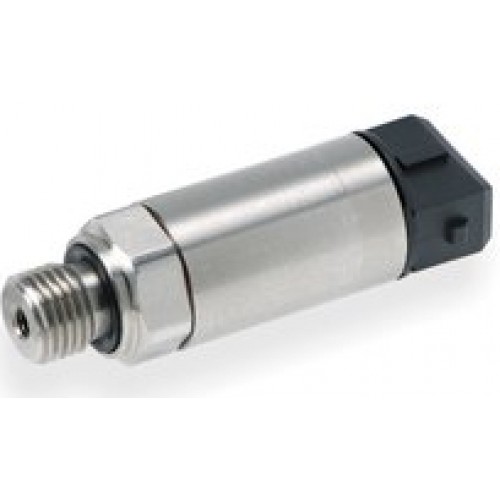

Huba Pressure sensor 511

These compact OEM pressure transmitters type 511 meet the highest specification for mechanical stress, EMC compatibility, and operational reliability, which means that this range is particulary suitable for all demanding industrial applications.  This sensor utilises a ceramic technology, developed by Huba Control and for the last 20 years, in millions of applications, used in combination with unique integrated electronic design, means that the type 511 series has a high degree of accuracy for all temperature ranges.  These units are available in small or production quantities, with an excellent price to performance ratio.

 Compact, rugged construction for highest operational reliability
 No media egress when exceeding rupture pressure
 Negligible temperature influence on accuracy
 Excellent EMC capacity
 Saving time by quick cable mounting by the customer with swift connector

Technical overview
1)
 Version until +150 ÀC on request
2)
 higher overload and rupture pressure on request
3)
 at nominal pressure
Pressure range
Relative     -1 ... 0 ă 600 bar
Absolute      0 ... 25 bar
Operating conditions
Medium      Liquids and gases
Temperature
    FPM  -15 ... +125 ÀC
    EPDM  -25 ... +125 ÀC
    NBR -25 ...   +85 ÀC
    FPM spec. -40 ... +150 ÀC (UL max. 125 ÀC)

Ambient
1)

ratiom. output, AMP JPT max.   +125 ÀC
    all other versions max.    + 85 ÀC
Tolerable overload / Rupture pressure
2)
  < 6 3.0 x fs
    > 6 2.5 x fs (max. 900 bar)
Materials
Case     Stainless steel 1.4305 / AISI 303
Materials in contact with the medium
   Pressure connection Stainless steel 1.4305 / AISI 303
    Sensor Ceramic Al2O3 (96%)
    Media stop system PPS
    Sealing material FPM, EPDM, NBR, FPM spec.
Media stop system
Huba-patented media stop system to prevent media egress when exeeding rupture pressure range (> 40 bar nominal value).
Electrical overview
  Output Power supply Load Current consumption
4)
2 wire  4 ... 20 mA   8.0 ... 33 VDC <
supply voltage - 8 V
 [Ohm] < 20 mA
3 wire
  0 ...   5 V   8.0 ... 33 VDC >10 kOhm / < 100 nF <   4 mA
  1 ...   6 V   8.0 ... 33 VDC >10 kOhm / < 100 nF <   4 mA
  0 ... 10 V 11.4 ... 33 VDC >10 kOhm / < 100 nF <   4 mA
  0 ... 10 V 24 VAC μ15% >10 kOhm / < 100 nF <   4 mA
  ratiom. 10 ... 90% 5 VDC μ5% >10 kOhm / < 100 nF <   4 mA
Polarity reversal protection            Short circuit proof and protected against polarity reversal. Each connection is protected against crossover up to max. supply voltage.
Insulation voltage
   standard   500 VDC
    optional 1000 VDC
Dynamic response
Response time     < 2 ms, typ. 1 ms
Load cycle     < 100 Hz
Protection standard
With connector DIN EN 175301-803-C   IP 65
All other versions    IP 67
Electrical connection
Cable 1.5 m
Swift connector
Connector AMP (Junior power time)
Connector M12x1 plastic thread
Connector M12x1 metal thread
Connector DIN EN 175301-803-C (mini-DIN)
Pressure connection
Inside thread  G ¼ with O-Ring seal
Outside thread
 G ¼, sealed at back, DIN 3852, form E
   G ½, sealed at front
  G ½, sealed at back and manometer (combi)
    ¼ -18 NPT
  R ¼, DIN 2999
  M12x1.5, sealed at back, DIN 3852, form E
  M14x1.5, sealed at back, DIN 3852, form E
Installation arrangement
Unrestricted
Tests / Admissions
Electromagnetic compatibility  CE conformity acc. EN 61326-2-3
UL   acc. Standard 61010-1
Shock acc. IEC 60068-2-27  100 g, 11 ms half sine wave, all 6 directions. Free fall from 2 m on concrete (6x)
Constant shock acc. IEC 60068-2-29  40 g for 6 ms, 1000x all 3 directions
Vibration acc. IEC 60068-2-6   20 g, 2 ... 2000 Hz with amplitude μ 15 mm, 1 Octave/min. all 3 directions, 50 constant load
Weight
Version with inside thread    ~ 85 g
Version with outside thread    ~ 95 g
