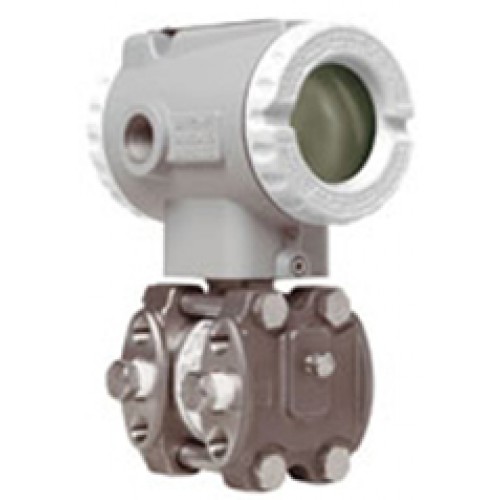

Smar HART pressure transmitter LD400

LD400 HART Pressure Transmitters consists of differential, absolute and gauge pressure transmitters as well as models for both level and remote seal applications. The LD400 HART Pressure Transmitters offers the best solution for all field applications and those demanding the highest performance. LD400 HART Pressure Transmitters offers:

• ± 0.045% Accuracy
• ± 0.2% of URL Stability - Guarantee For 12 Years
• 200:1 Rangeability
• 35 ms Total Response Time
• Non-volatile Flow Totalizer
• Tank Linearization
• PID Control Capability
• Advanced Diagnostics
• Bi-directional Flow Measurement
• Supports DD, EDDL, and FDT/DTM
• Non-polarity Power Input
• Built-in Transient Suppression

Transmitter Models
Differential Pressure - LD400D and LD400H
Pressure is applied to high and low side and differential pressure is measured. High static pressure is supported for LD400H models.

Flow - LD400D and LD400H
The differential pressure is generated by a primary flow element and the square root function computes the flow measurement.

Absolute Pressure - LD400A
The pressure is measured at the high side of the transmitter and the low side is at zero absolute pressure to a sealed chamber with vacuum.

Gage Pressure - LD400M
The pressure is measured at the high side of the transmitter and the low side is open to the atmosphere, providing true local atmospheric reference.

Level - LD400L
The transmitter has a flange-mounted unit for direct installation on vessels. Extended diaphragms are also available. The closed tank low side can compensate for ullage pressure.

Sanitary - LD400S
LD400S is especially designed for food and other applications where sanitary connections are required. With threaded or "tri-clamp" connections, it allows quick and easy cleaning and maintenance.

The flush connection enables deposit removal without disconnecting the seal. Tri-clamp and other connections are compliant to 3A (74-02) standard for food grade applications.
