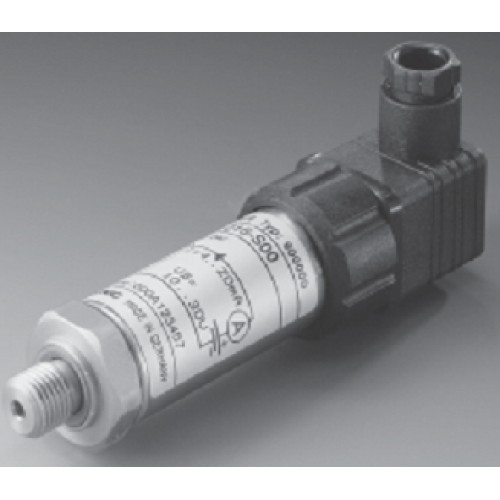

HYDAC Electronic Pressure Transmitter for shipbuilding and offshore HDA 3400
Description:
This pressure transmitter, which has been specially developed for shipbuilding and offshore applications, is based on a very
robust DMS sensor cell. All parts in contact with the fluid are in stainless steel, and are welded together. Since no seals are required
in the sensor chamber, leakage is eliminated. The 4 .. 20 mA output signal in two conductor technique enables connection to the relevant evaluation electronics. Areas of application are pressure monitoring on marine transmissions, diesel engines, pumps and general hydraulic and pneumatic systems.
Technical Specifications:
Input dataHDA 3400
Measuring ranges16; 60; 100; 250; 400; 600 bar
Overload pressure200 % FS, max. 900 bar
Burst pressure400 % FS
Mechanical connectionG1/4 A DIN 3852
Torque ratingapprox. 20 Nm
Parts in contact with mediaStainless steel, Seal: FPM
Output data
Curve deviation at max. setting to !à0.5 %FS typ
DIN16086 (accuracy class) !à1 %FS max
Curve deviation at min. setting !à0.25 %FS typ
(B.F.S.L.) !à0.5 %FS max
Temperature compensation !à0.15 %FS/10K typ
zero point !à0.25 %FS/10K max
Temperature compensation !à0.15 %FS/10K typ
over range !à0.25 %FS/10K max
Linearity at max. setting to DIN 16086 !à0.15 %FS typ !à0.3 %FS max
Hysteresis !à0.2 %FS typ !à0.4 %FS max
Repeatability !à0.1 %F
Rise timeapprox. 1 ms
Long-term drift !à0.3 %FS typ. / yea
Ambient conditions
Nominal temperature range 0 .. +70 !a
Operating temperature range-25 .. +85 !a
Storage temperature range-40 .. +100 !a
Fluid temperature range-40 .. +100 !a
EN 50081-1 and EN 50081-2
mark
EN 50082-1 and EN 50082-2
Vibration resistance 5 .. 25 Hz: 3.2 mm
25 .. 100 Hz: 4g
Safety type to DIN 40050IP 65
Other data
Supply voltage10 .. 30 V
Residual ripple supply voltage 5 %
Reverse polarity protection of theavailable
supply voltage, excess voltage,
override and short circuit protection
Life expectancy> 10 million cycles
0 .. 100 %FS
Weightapprox. 145 g
Pin connections (HDA 3445)
