Dynisco pressure transmitter Melt Pressure Sensors with mV/V Outputs PT467E-M10 Melt Pressure Transducers
Features and Benefits
- 3.33 mV/V full scale output
- 6 mm sensing element
- Accuracy of better than ±1%
- Pressure ranges from 0 - 5,000 psi to 0 - 10,000 psi
- Good stability and repeatability
- Fits in space limited areas
- Internal 80% shunt calibration
- CE approved
Description

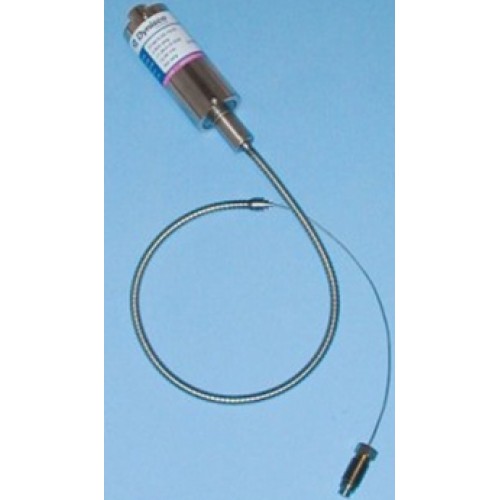

Model PT467E-M10 Series of pressure transducers features a small, 6 mm sensing element ideal for general purpose polymer melt pressure measurements with space restriction issues or on small lab extruders and rheometers. The PT467E-M10 features a 0.06" diameter exposed capillary. This allows 1/16" radius bends. It also has a free-spinning jam nut that simplifies installation. Standard transducers are supplied with a DyMax® coated diaphragm for increased wear resistance and longevity. A 6-pin bendix-style connector is used for easy connect and disconnect. The PT467E is designed for the restricted locations is ideal for nozzle pressure measurements in Injection Molding, small lab extruders and rheometers
