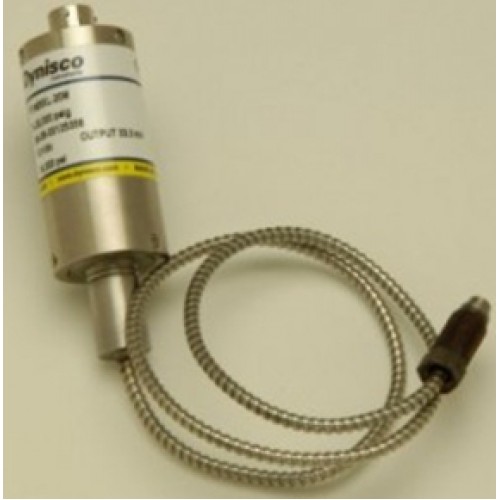

Dynisco pressure transmitter Melt Pressure Sensors with mV/V Outputs PT465XL Melt Pressure Transducers
Features and Benefits
- 3.33 mV/V full scale output
- Compliment to in-mold transducers
- Accuracy of better than ±0.5%
- Pressure ranges from 0 - 3,000 psi to 0 - 10,000 psi
- Rugged Inconel 718 diaphragm
- 1 inch flex band radius
- Free spinning jam nut for ease of installation
- Minimum mounting space required
- Internal 80% shunt calibration
- CE approved
Description
Model PT465XL Series of pressure transducers measure polymer melt pressure in an injection molding machine nozzle or a hot runner. A protective flexible armored cable extends from its electronic housing to the tip for unmatched strength and increased life. Located in the nozzle, the PT465XL provides a very accurate (0.5%) measurement of the pressure of the plastic melt entering the mold. It also has a free-spinning jam nut that simplifies installation. Standard transducers are supplied with an Inconel diaphragm for increased wear resistance and longevity. A 6-pin bendix-style connector is used for easy connect and disconnect. The PT465XL is designed for the restricted locations is ideal for nozzle and hot runner pressure measurements in Injection Molding.
