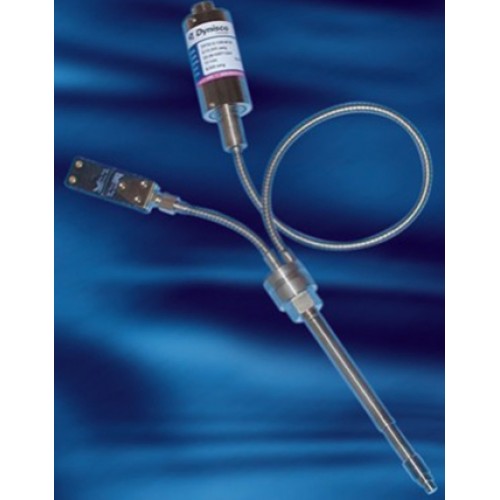

Dynisco pressure transmitter Melt Pressure Sensors with mV/V Outputs PT410/412 Alternate Fill Melt Pressure Sensors (NaK)
Features and Benefits
- Accuracy better than ±0.25%
- Measures up to 1000°F (538°C)
- NaK fill meets FDA and USDA requirements
- Inconel diaphragm
- 0 - 500 to 0 -10,000 psi
- 3.33 mV/V FSO
Description
The PT410 Series transducer is a ±0.25% sensor ideal for food or medical applications requiring high accuracy, simple installation, repeatability and reliability. The NaK fill material meets the requirements set forth by both the FDA and USDA for contact with food and medical products. The PT410 Series transducers provide the industry standard 3.33 mV/V signal designed to work with most pressure indicators. The PT410 comes equipped with an eight pin bendix connector. Optional thermocouple or RTD configurations are available to provide melt temperature. The PT410 features a 1/2-20 UNF thread for installation in standard transducer mounting holes and can be supplied with a variety of other electrical connections, if desired.
