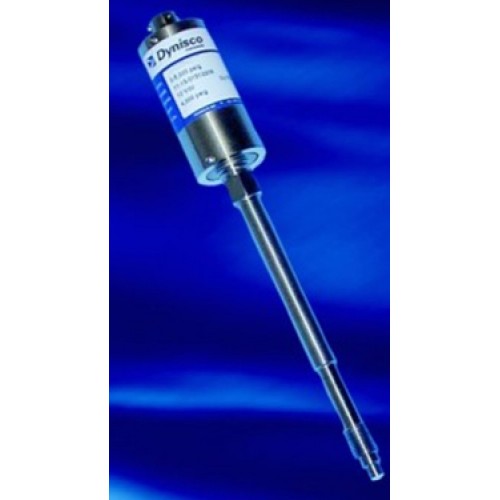

Dynisco pressure transmitter Melt Pressure Sensors with mV/V Outputs MDA410 Melt Pressure Transducers
Features and Benefits
- 3.33 mV/V full scale output
- Accuracy of better than ±0.25%
- Pressure ranges from 0 - 35 BAR to 0 - 700 BAR
- Handles temperatures up to 1000°F
- Superior thermal compensation
- Inconel diaphragm
- Internal 80% shunt calibration
- CE Approved
Description
Dynisco's MDA410 Series of pressure transducers are the ideal choice for non-mercury, food and medical extrusion applications requiring a fill material that meets FDA and USDA requirements. Model MDA410 uses a special high temperature fill (NaK, Potassium Sodium) and an Inconel diaphragm to allow accurate pressure measurements in processes with temperatures as high as 1000°F. The transducers are supplied with a high accuracy (0.25%), great repeatability and reliability. An 6-pin bendix-style connector is used for easy connect and disconnect. The MDA410 is the most commonly used alternate fill melt pressure transducer in the world.
