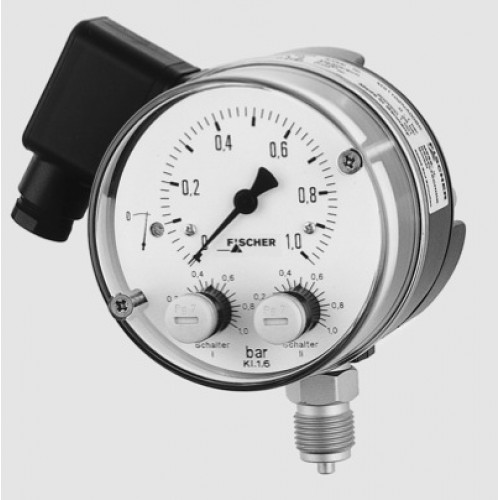

Fischer Contact Pressure Gauge S1199VA00BK 0-10BAR MS1108VA00BK0000 0-16BAR 24V 0.4A
MS1199VA00BK 0-10BAR MS1108VA00BK0000 0-16BAR 24V 0.4A Specifications General Measuring range Nominal pressure Max. pressure Perm. ambient temperature Perm. media temperature Degree of protection Mounting position Accuracy Adjustment of zero point Measuring System Measuring ranges ≤ 16 bar Measuring range 0-25 bar Switching Points Output contacts Setting of switching points Switching hysteresis Load / contact Electrical Connection Pressure Connection Materials Pressure chamber Measuring diaphragm Materials, media Materials, housing Weight Approval CE marking Mounting 0 ... 400 mbar up to 0 ... 25 bar (s. Ordering Code) 25 bar overpressure proof to nominal pressure (all measuring ranges), safe against negative pressure -10 ... +70°C 70°C IP54 per DIN EN 60529 vertical, pressure port downward (rear) ± 1.6% FS located in the dial diaphragm measuring system, diaphragm of reinforced elastomere diaphragm measuring system, diaphragm of DURATHERM© 1 or 2 micro switches, 1-pole changing contacts adjustable by reference value scale smallest adjustable value: approx. 5% FS approx. 2.5% of FS U~max. =250VAC Imax.=5A U=max. = 30 V DC Imax.= 0.4 A Pmax.=250VA Pmax.=10 W Switch 1 Switch 2 prewired numbered cable, cable terminal box, 7-pole plug connection connection shank G1⁄2 B DIN EN 837 aluminium GkAlSi10(Mg), varnished black aluminium GkAlSi10(Mg) HART-COAT© stainless steel 1.4305 diaphragm and gaskets of NBR or Viton© diaphragm of DURATHERM© Ni Cr Co-alloy stainless steel 1.4310, 1.4305 macrolon pressure chamber of Al = 1.2 kg, pressure chamber of 1.4305 = 3.5 kg type examination according to the rules of ’Germanischer Lloyd’ possible according to applicable regulations pipe mounting: wall mounting: panel mounting: connection shank per DIN EN 837 bottom or rear pressure connection 3 fastening elements, bottom pressure connection with front ring ø 132 mm, bottom or rear pressure connection (accessory DZ11)
