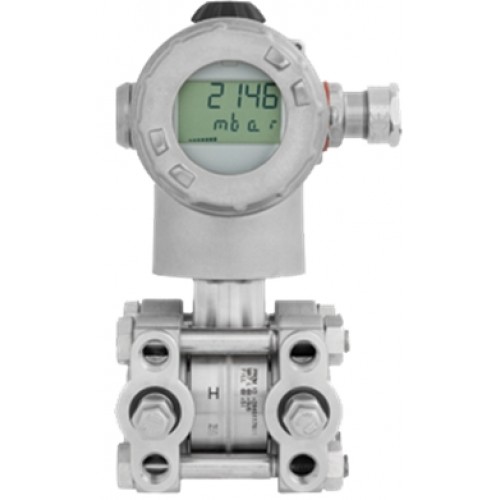

JUMO dTRANS p20 DELTA Ex d - Differential Pressure Transmitter with Flameproof Enclosure (403023)

Features

• HART® interface
• Ex d explosion protection according to ATEX, INMETRO, GOST-R
• Linearity: 0.07 %
• Turn down: 1:200
• Simple operation with rotary knob
• Characteristic line and display also adjustable for flow measurement
• Stainless steel case
• Setup program
• LCD display with bar graph
• Display scaling with a choice of measuring units
• Display of sensor temperature
• Display of minimum and maximum pressures
• Current generator function

Customer benefits

• Process reliability
  Parts exposed to the medium are made of stainless steel (alternatively with NiMo alloy, or with a Monel, titanium or PTFE coating when used with a pressure separator). This offers optimum resistance, even with aggressive media. The measuring instrument has a high degree of precision with deviation from characteristic line of 0.05 %, and offers excellent long-term stability of < 0.1 % per year. The version with explosion protection "Ex d (flameproof enclosure)" allows installation of the connection for zone 0 and the entire pressure transmitter in zone 1.
• Simple and time-saving
  The measuring instrument can be adjusted reliably and easily with a rotary knob on the device or with a convenient setup program.
  The device is equipped with both a HART interface and the JUMO interface.
  The rotary knob is operated from the outside without having to open the device.

• Flexible
  The measuring instrument can be fitted in any installation position for optimum readability, configuration, and electrical installation.
  The measurement properties can be adapted to all major applications (process pressure, filling level, flow) and ambient conditions using the adjustable parameters.

Applications

• Chemical and petrochemical industries
• Oil and gas industry
• Power stations
• Water and wastewater technology
• Paper production
• Food and beverage industry
• Pharmaceutical industry
• CIP/SIP systems
• Machine and plant engineering
• Air conditioning and refrigeration applications

The JUMO dTRANS p20 DELTA Ex d differential pressure transmitter with HART® interface combines maximum precision with simple operation. It is used to measure the differential pressure of gases, vapors, and liquids. The integrated LCD display shows measured values and device data.
The differential pressure transmitter with flameproof enclosure can be installed in zone 0. The case and sensors are made of high-grade stainless steel. Pressure separators can also be
connected for particular process technology applications (see data sheets 409772 to 409784).
The transmitter is programmable. As a result it is readily adaptable to a variety of different measurement tasks. A convenient setup program is available as an accessory to enable operation via the interfaces. A rotary knob makes manual operation on site very convenient and quick.

For the version with "Ex ia" explosion protection see data sheet 403022.
For the version for relative and absolute pressure see data sheets 403025 and 403026.
