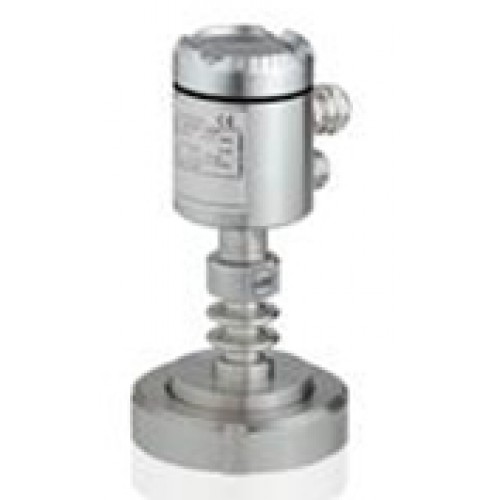

ABB pressure transmitter standard overload absolute pressure transmitter 261AC, 261AG, 261AJ, 261AM, 261AN

The compact transmitter class for absolute pressure with frontbonded diaphragms works within a broad selection of variants, options, fill fluids and wetted materials. The wide range of available process connections meets even special industrial requirements:

• Threaded connections: e.g. for the power, pulp/paper, or oil and gas industries
• Flange connections: e.g. for the chemical industry
• Hygienic connections: e.g. for the pharmaceutical or food and beverages industries

The compact, robust transmitter housing is made of 316 stainless steel as a standard. Due to its high corrosion resistance it can be used in a wide variety of process and ambient conditions without any problems. The user friendly display allows simple and intuitive local transmitter operation. Full device support, including diagnostic/maintenance information is guaranteed via the Device Type Manager software used in either a stand alone or system engineering tool.
The transmitter provides local zero and span adjustments even without display.

• Base accuracy: ±0.1 %
• Span limits: 6 to 3000kPa abs; 45mmHg to 435psia
• 4 to 20 mA output with HART communication as standard
• Conforms to SIL2 acc. to IEC 61508 / IEC 61511
• Full compliance with PED
