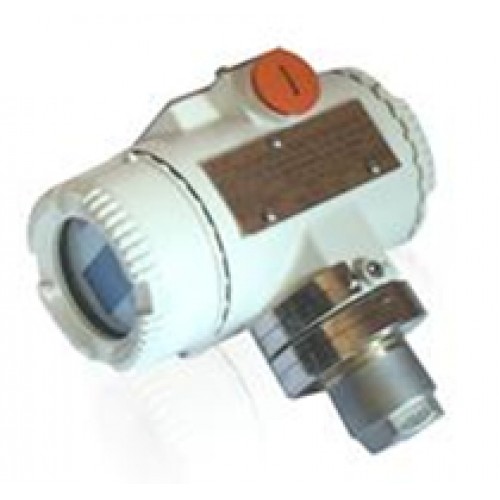

ABB pressure transmitter standard overload absolute pressure transmitter 264NS

Model 264NS is a high overload absolute pressure transmitter with a maximum working pressure up to 21MPa, 3045psi. It comprises a reliable sensing system coupled with the very latest digital technologies, providing a large turn down ratio up to 100:1. The user has a comprehensive choice of sensors and is therefore able to optimize in-use total performance and stability. Configuration facilities are provided locally via local keys combined with LCD indicator or via hand held terminal or PC configuration platform.

• Base accuracy : ±0.075%
• Span limits 1.1 ...16000 kPa abs.; 8 mm HG ... 2320 psia
• 5–year stability
• Multiple protocol availability – provides integration with HART®, PROFIBUS PA and FOUNDATION Fieldbus platforms offering interchangeability and transmitter upgrade capabilities
• Full compliance with PED Category IV – suitable for safety accessory application
