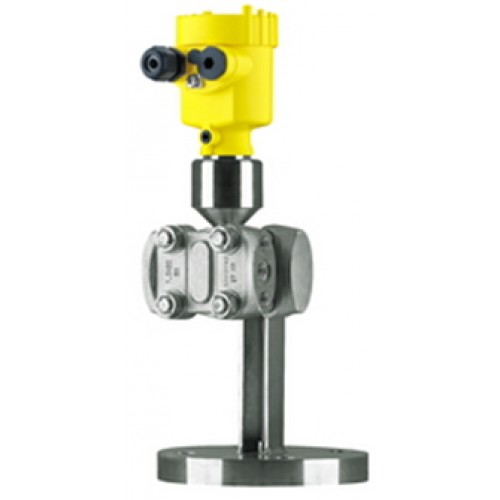

Vega Unilateral isolating diaphragm on VEGADIF 65 Isolating diaphragm CSS
Application area
The VEGADIF 65 with chemical seal CSS (single side assemply) is suitable for level and differential pressure measurement. Through the assembly of the chemical seal CSS, applications in corrosive, high viscosity and hot products can be realized.
Advantages
- High chemical resistance through adapted diaphragm materials
- Versatile solutions through individual configuration
Technical data
Measuring range
from -100 … +100 mbar (-10 … +10 kPa)
to -40 … +40 bar (-4000 … +4000 kPa)
to -40 … +40 bar (-4000 … +4000 kPa)
Process fitting
flanges from DN 50, 2"
Process temperature
-40 … +400 °C
| |
