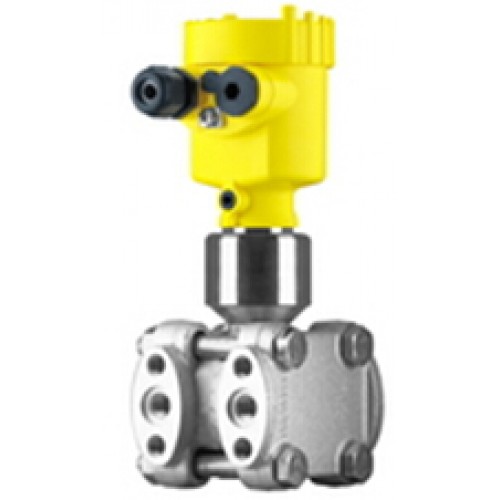

Vega Differential pressure transmitter with metal measuring diaphragm VEGADIF 65
Application area
The differential pressure transmitter VEGADIF 65 can be used universally for the measurement of liquids, gases and vapours. Typical applications are level measurements in pressurized vessels as well as flow measurements in combination with DP flow elements. Further applications are pressure monitorings on filters as well as density and interface measurements.
Advantages
- Measurement of very low differential pressures through high precision measured value detection
- High reliability through integrated overload diaphragm
- Versatile use through a variety of measuring ranges and process fittings
Technical data
Measuring cell
metallic
Measuring range
from -10 … +10 mbar (-1 … +1 kPa)
to -40 … +40 bar (-4000 … +4000 kPa)
to -40 … +40 bar (-4000 … +4000 kPa)
Process fitting
¼-18 NPT, RC ¼
Process temperature
-40 … +120 °C
with chemical seal assembly -40 … +400 °C
with chemical seal assembly -40 … +400 °C
Deviation in characteristics
0.15 %; 0.075 %
| |
