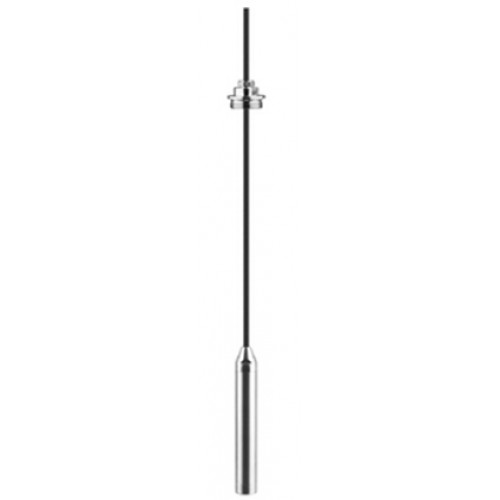

Vega Submersible pressure transmitter with ceramic measuring cell for level measurement of water/wastewater VEGAWELL 52
Application area
The VEGAWELL 52 is suitable for continuous level measurement of liquids. Typical applications are measurements in water/waste water, deep wells and in the shipbuilding industry.
Advantages
- High reliability through maximum overload and vacuum resistance of the ceramic measuring cell
- High plant availability through integrated overvoltage protection
- Versatile use through robust housing and cable design
Technical data
Measuring cell
CERTEC
Sensor diameter
from 22 mm
Measuring range
0 … +60 bar (0 … +6000 kPa)
Process temperature
-20 … +80 °C
Deviation in characteritics
0.2 %; 0.1 %
| |
