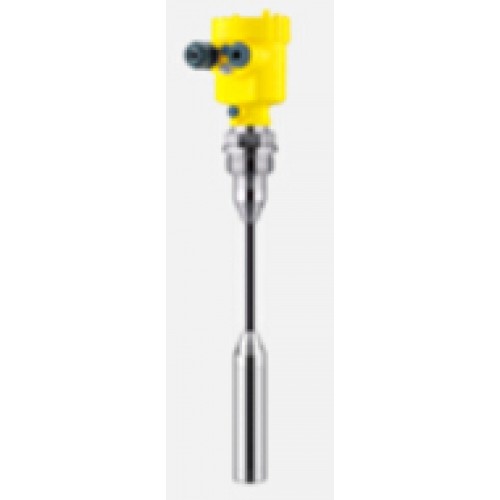

Vega Submersible pressure transmitter with ceramic measuring cell for level measurement of liquids VEGABAR 86
Application area
The VEGABAR 86 is a suspension pressure transmitter for level measurement in wells, basins and open vessels. Thanks to the flexibility through different cable and tube versions, VEGABAR 86 can be used in various applications.
Your benefit
- High plant availability through maximum overload and vacuum resistance of the ceramic measuring cell
- Self-cleaning effect through front-flush installation
- Low maintenance costs through wear-free ceramic measuring cell
Technical data
Measuring cell
CERTEC®
Sensor diameter
32 mm
Measuring range
0 … +25 bar
(0 … +2500 kPa)
(0 … +2500 kPa)
Process fitting
straining clamp, threaded fitting
thread from G1½, 1½ NPT
flanges from DN 40, 2"
thread from G1½, 1½ NPT
flanges from DN 40, 2"
Process temperature
-20 … +100 °C
Accuracy class
0,1 %
| |
