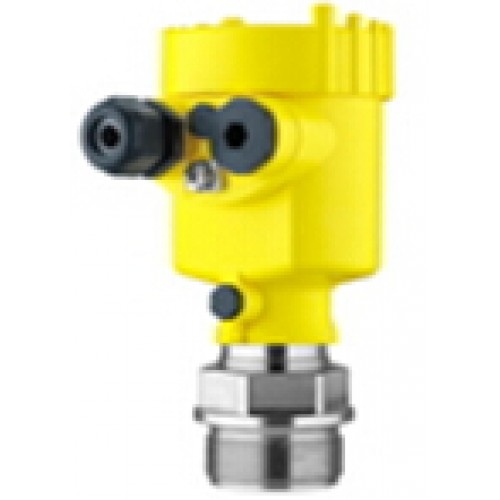

Vega Pressure transmitter with METEC® measuring cell VEGABAR 55

Application area

The VEGABAR 55 is a pressure transmitter for pressure and level measurements in the chemical, food processing and pharmaceutical industry. The VEGABAR 55 offers the possibility to detect even smallest measuring ranges from 0.1 bar. Products are liquids and viscous products with higher temperatures.

Advantages

Excellent measuring accuracy even with strongly fluctuating process temperatures
High reliability through vacuum resistant version
Very good cleanability and high chemical resistance through high resistance diaphragm materials

Technical data

Measuring cell

METEC®

Measuring range

-1 … +25 bar (-100 … +2500 kPa)

Process fitting

thread from G½, ½ NPT
flanges from DN 25

Process temperature

-12 … +200 °C

Deviation in characteristics

0.2 %; 0.1 %; 0.075 %

SIL qualification

optionally up to SIL2
