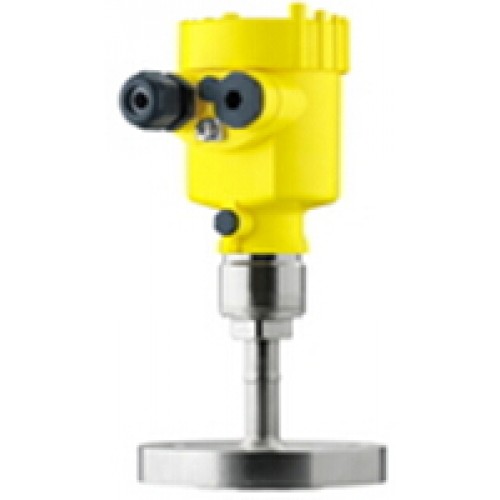

Vega Pressure transmitter with isolating diaphragm VEGABAR 51
Application area
The VEGABAR 51 is a pressure transmitter with chemical seal for pressure and level measurement. The chemical seal systems of VEGABAR 51 adapted to the process ensure a reliable measurement even with highly corrosive and hot products.
Advantages
- Simple adaptation, due to individual configuration
- Reliable measurement up to temperatures of 400 °C
- Reliable measurement independent of foam generation and tank installations
Technical data
Measuring cell
chemical seal system
Measuring range
-1 … +400 bar (-100 … +40000 kPa)
Process fitting
flanges from DN 25, 1"
Process temperature
-40 … +400 °C
Deviation in characteritics
0.2 %
SIL qualification
optionally up to SIL2
| |
