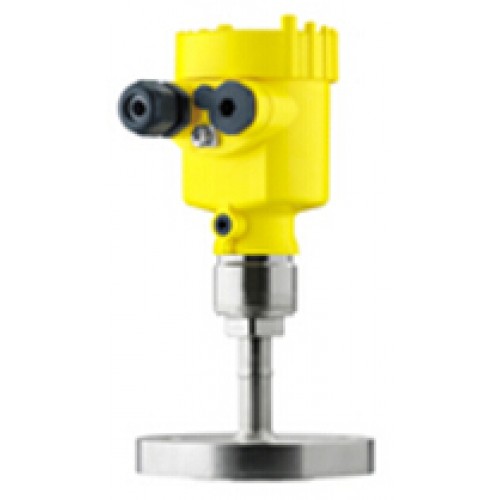

Vega Pressure transmitter with chemical seal for hot and chemically aggressive media VEGABAR 81
Application area
The VEGABAR 81 is a pressure transmitter with chemical seal for pressure and level measurement. The chemical seal systems of VEGABAR 81 adapted to the process, ensure a reliable measurement even with highly corrosive and hot products.
Your benefit
- Simple adaptation thanks to verious configuration options
- Reliable measurement with temperatures up to 400 °C
- Reliable measurement independent of foam generation or tank installations
Technical data
Measuring cell
chemical seal system
Measuring range
-1 … +1000 bar
(-100 ... +100000 kPa)
(-100 ... +100000 kPa)
Process fitting
thread from G½, ½ NPT
flanges from DN 25, 1"
hygienic fittings
flanges from DN 25, 1"
hygienic fittings
Process temperature
-90 ... +400 °C
Accuracy class
0,2 %
| |
