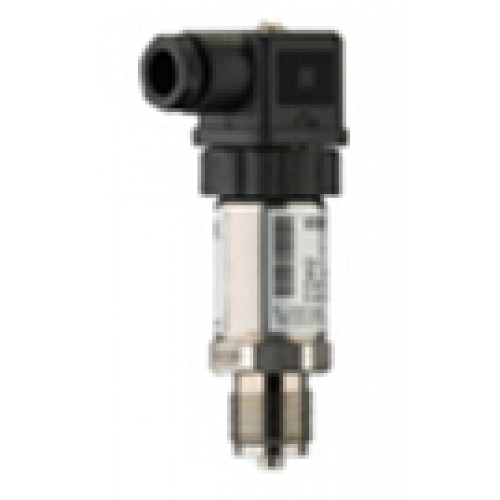

Vega Process pressure transmitter with metal sensor VEGABAR 17
Application area
The VEGABAR 17 is a universal pressure transmitter for measurement of gases, vapours and liquids. The VEGABAR 17 is an economical solution for a number of applications in all industries.
Advantages
- Price-favourable version with smallest mounting dimensions
- Universal use through completely welded measuring cell
- High chemical resistance through high quality diaphragm materials
Technical data
Measuring cell
piezoresistive/thin film strain gauge
Measuring range
-1 … +1000 bar (-100 … +100000 kPa)
Process fitting
thread from G½, ½ NPT
Process temperature
-40 … +150 °C
Deviation in characteristics
0.5 %
| |
