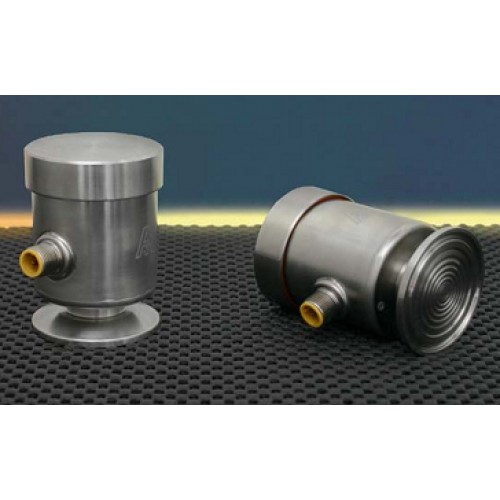

Anderson HH Compact Pressure Transmitter

A 3-A compliant stainless steel diaphragmed version of our ultra low profile series. The HH is ideal for preassembled skids destined for the wet environments found in dairies, beverage and food processing facilities.

Excitation:   10-40 VDC (Absolute), 24 VDC Nominal
Response Time:   200 uSec
    regulated or unregulated
Wetted Parts:   316L stainless steel
Output:   4-20 mA DC, 2 wire with non-interrupting
    (Ra max. = 25 microinches, 0.6 microns)
Housing Material:  304 stainless steel
Loop Resistance:  0-700 ohms at 24 VDC
Span Adjustment:   !à 50% of range, except 15 psi !à1
Wiring Connection:  5 pin M12 Quick Disconnect Receptacle
Zero Adjustment:  10%
Recommended Cable:
Mounting:   Direct connection
    (4-8mm (0.16-0.31!±) cable sheath OD)
Standards:    Designed and manufactured to sound
Accuracy:   !à 0.5% of full scal
    engineering practices in accordance with
Repeatability:   !à 0.3% of full scal
    Article 3.3 of the PED 97/23/EC
Hysteresis:   !à 0.10% of full scal
    NEMA 4X
Linearity:   !à0.10% of full scal
    IP66 & IP69K
Stability:   !à0.30% of calibrated range/6 month
    CSA B51-03
Storage Temperature:  -40!aC to 65!aC (-40!aF to 149
    3-A
Process Temperature Limits:  -1!aC to 149!aC (30!aF to 300
    CE (pending)
     (Horizontal mount recommended over
Warranty:   1 year
    135!aC (275!aF
Ambient Temperature Limits: -18!aC to 49!aC (0!aF to 120
Effect of Temperature Change:!à 0.1 psig/5.5!aC (10!aF) typi
