Features


• High reliability micro-capacitance silicon cells
• Static Pressure to 140 Bar on dp ranges
• Accuracy, +/-0.1% of calibrated span
• Exceptional resistance to harsh environments
• Hart® 5.2 multi-drop communication
• Versatile indicator with 5-digit display
• Field repair possible with common spare parts
• Built-in loop calibration facility
• Large installed base

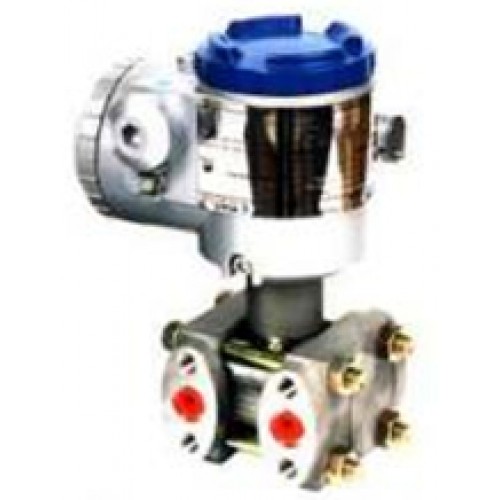

The Fuji Electric FCX-CII  is a high performance low cost pressure transmitter.  This is achieved by offering only stainless steel wetted parts and mid-range measuring cells.  For high/low pressure ranges, or exotic materials, select the FCX-AII.
The Fuji Electric FCX series of pressure transmitters use a silicon micro-capacitance cell proven on thousands of difficult applications.  They are installed in harsh environments on oil pipelines, power stations, gas compressor stations, water treatment plants and steel plants.  They have European, American, Russian and Chinese approvals.  Field repair is possible using only one amplifier for all pressure transmitter types.

To provide high flexibility, remote seals can be fitted to any of the FCX series of transmitters.  For further information, please see relevant datasheet.

High Performance Flow Transmitter

Fuji Electric FCX-AII

• High reliability micro-capacitance silicon cell
• Static Pressure to 800 Bar on dp ranges
• High accuracy, +/-0.07% of calibrated span
• Exceptional resistance to harsh environments
• Hart® 5.2 multi-drop communication
• Versatile indicator with 5-digit display
• Field repair possible with common spare parts
• Built-in loop calibration facility
• Large installed base

The FCX-AII transmitter is a full specification instrument that can be supplied to meet most applications.  If a mid-range transmitter is required.  Then we recommend the lower cost FCX-CII series.

The FCX-AII is recognised as a world leader for low draft range measurements or for dp measurements at very high static pressure.

To provide high flexibility, remote seals can be fitted to any of the FCX series of transmitters.  For further information, please see relevant datasheet.
