Fuji pressure transmitter Pressure Accessories Oliver Valve 5 Valve Manifold

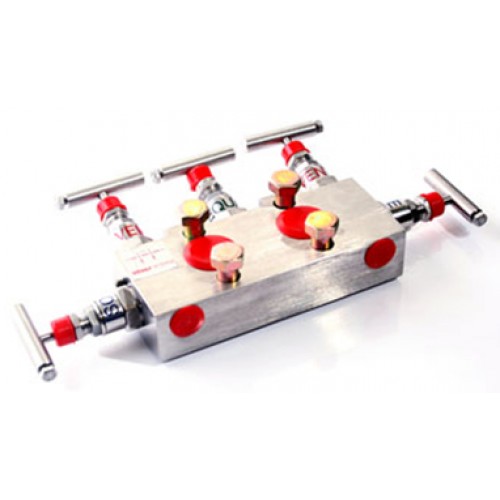

Oliver Valve 'Y53' Type 5 valve manifolds are designed for direct mounting todifferential pressure transmitters, with separate isolation and vent for LP and HP inlets plusequalising valve for simple calibration. Each needle valve
head is designed for safe and reliable isolation, giving bubble tight shut off, with non-rotating & anti-galling tip
and dynamic self-adjusting spindle seal to give long service life in a variety of service conditions.
We typically keep 5 valve manifolds in stock.
Key Features
- Non rotating tip - self centering & anti-galling
- Piston ring - gives dynamic adjustment of gland seal in response to pressure change
- Anti-blow out spindle - a major safety feature
- Secure seal - precision machined to give leak free operation for the life of the valve. Available
in either PTFE or Grafoil
Standard Specification
Pressure:6000psi
Temp:240 deg C
Packing:PTFE
Seat:Metal to Metal
Handle:T-Bar
Bore:0.21" (5.4mm)
CV:0.46
Connections:1/2" Inlets
Supplied with 4x M10 bolts (7/16"UNF also available) and 2x PTFE/Grafoil seal rings
head is designed for safe and reliable isolation, giving bubble tight shut off, with non-rotating & anti-galling tip
and dynamic self-adjusting spindle seal to give long service life in a variety of service conditions.
We typically keep 5 valve manifolds in stock.
Key Features
- Non rotating tip - self centering & anti-galling
- Piston ring - gives dynamic adjustment of gland seal in response to pressure change
- Anti-blow out spindle - a major safety feature
- Secure seal - precision machined to give leak free operation for the life of the valve. Available
in either PTFE or Grafoil
Standard Specification
Pressure:6000psi
Temp:240 deg C
Packing:PTFE
Seat:Metal to Metal
Handle:T-Bar
Bore:0.21" (5.4mm)
CV:0.46
Connections:1/2" Inlets
Supplied with 4x M10 bolts (7/16"UNF also available) and 2x PTFE/Grafoil seal rings
