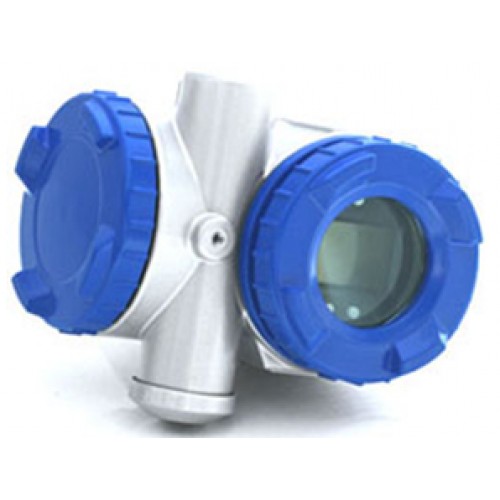

The Fuji Electric FCX AII V5 series of pressure transmitters use a silicon micro-capacitance cell proven on thousands of difficult applications. They are installed in harsh environments on oil pipelines, power stations, gas compressor stations, water treatment plants and steel plants.

Fuji Electric is recognised as a world leader for low draft range measurements or for dp measurements at very high static pressure.
To provide high flexibility, remote seals can be fitted to any of the FCX series of transmitters. For further information, please see relevant datasheet.


Application Flexibility

Applications in HVAC, water treatment, food, paper, pharmaceutical, chemical, petrochemical, offshore, sub-sea and nuclear industries can be satisfied by this range of transmitters.

By selecting from a large range of materials, we are able to customise the transmitter and supply remote seals. We temperature compensate the whole assembly to maintain the highest level of performance. Selecting from 316SS, Hastelloy, Monel, Tantalum, Gold and Ceramic we can custom build a transmitter to our own high standards, or to your individual specifications.

Highlights
High reliability micro-capacitance silicon cell
High accuracy, +/-0.1% of calibrated span
Unrivalled long term stability: +/- 0.1% / 10 Years
Exceptional resistance to harsh environments
Hart® 5.2 multi-drop communication
Versatile indicator with push button programming
Field repair possible with common spare parts
Built-in loop calibration facility
Large installed base

Common Specifications
Diaphragm materials	SS316L, hastelloy-C, monel, tantalum, zirconium, titanium, double coated with gold and ceramic
Elevation/suppression	-100 to +100%URL
Span measuring range	100 to 1/100 URL
Liquid contacting temperature	-40 to 120ºC
Ambient temperature	-40 to 85ºC
Output signal / Allowable load resistance	DC 4 to 20mA / 600 Ohm
Supply voltage	DC 10.5 to 45V
Long-term stability	±0.1% URL/10 years
Explosion-proof specification	Flameproof, intrinsic safety type
Mounting method	50A pipe mounting, direct mounting
Weight	2.9Kg (standard unit)



Absolute Pressure transmitter
Type	FKA, FKH or FKM with remote seal
Measuring span	16/130/500/3000 kPa
Maximum test pressure	0.5/1.5/9 MPa
Measuring accuracy	Up to ±0.1% Standard: ±0.2%
