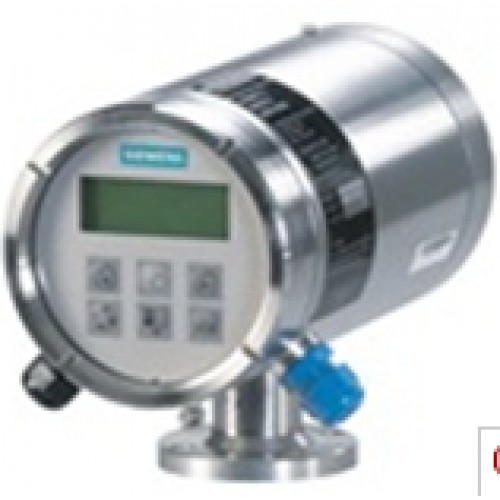

SIEMENS temperature Flow Measurement coriolis transmitter SITRANS F C MASS 6000 Ex d
The SITRANS F C MASS 6000 Ex d is based on the latest developments within digital signal processing technology – engineered for high performance, fast flow step response, fast batching applications, high immunity against process noise, easy to install, commission and maintain. The transmitter is manufactured in stainless steel (AISI 316L) and able to withstand harsh installation conditions in hazardous application within the process and chemical industry.
In order to make a complete flowmeter, the SITRANS F C MASS 6000 flow transmitter must be combined with one of the following MASS sensors:
SITRANS F C MASS 2100 DI 3-40: Mass flow measurement for general industry
SITRANS F C MASS 2100 1.5: For low flow applications
SITRANS FC300: For low flow applications
Benefits
-
Safe operation due to intrinsically safe keypad and display directly programmable in hazardous area
-
Exchange of transmitter directly in hazardous area without shut down of process pipe line due to ia IIC sensor / transmitter interface
-
Accurate measurement and fast batching due to flow step response with an 30 Hz update rate
-
Superior noise immunity due to a patented DFT (Discrete Fourier Transformation) algorithm
-
Built-in batch controller with compensation and monitoring comprising 2 stage batching
|
Accuracy, mass flow |
0.1% of mass flow rate |
|
Outputs |
1 current 1 pulse 1 relay |
|
Communication |
HART |
|
Display |
3 x 20 characters |
|
Enclosure Ratings |
IP67 |
|
Ambient temperature |
From -20 °C to 50 °C (-4 °F to 122 °F) |
|
Approvals |
Eex de (ia/ib) IIC |
