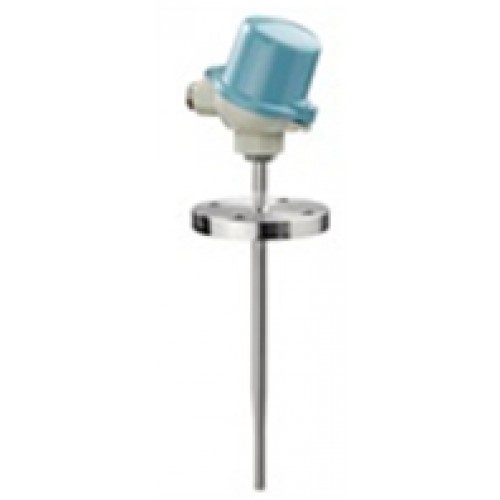

SIEMENS temperature measurement Temperature Sensors SITRANS TS500

The industry-grade temperature sensor supports a wide range of measuring go from basic applications to solutions in harsh environment. A benefit for the user is the use of standard components even for individual configurations. This ensures the modular concept consisting of a barstock or tubular thermowell, extension and connection head with optional integrated transmitter or display. Version for intrinsic safety, flameproof and non sparking are available.

Output direct sensor signal
4…20 mA (TH100/TH200)
HART (TH300)
PA (TH400)
FF (TH400)
Max. operation temperature*- measuring point:-connection head:

Pt 100 Basic: –30...+400 °C
 Pt 100 Extended: –196...+600 °C
Thermocouple–196...+1100 °C
(Depends on type of TC)

Benefits

• Exchangeable during operation

• Wide application range due modular design

• Explosions protection according ATEX and IEC EX intrinsic safety, flameproof and non sparking

• With optional local indicator
