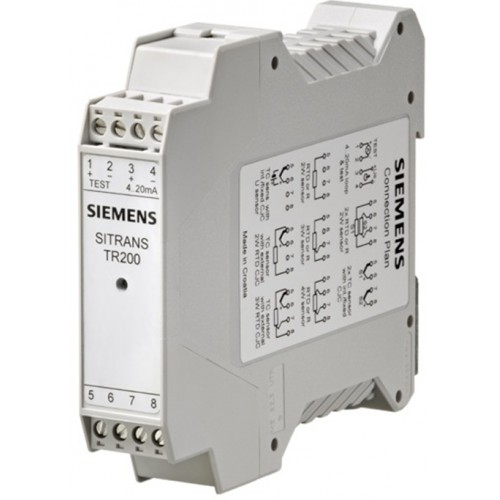

SIEMENS temperature measurement Rail Transmitter SITRANS TR200

SITRANS TR200 is designed to support all common RTDs, thermocouples, resistance and Millivolt sensors. Setup is quick and easy with the transmitter-modem and SIPROM T software. This configuration tool can be downloaded free. Unique user-friendly details are implemented: Without opening the 4-20mA loop, the output current can be read out directly with a multimeter. A red/green LED shows the technician the status at a glance.

Detail

Input	Resistance thermometers, Thermocouples, Resistance-type sensors, DC sources
Output	4 to 20 mA

Benefits

• Measures temperature with a linear output signal

• high accuracy across entire ambient temperature range

• Reduces plant noise

• Alarm signal for sensor break or short-circuit according NAMUR 43

• Electro magnetic compatibility (EMC) according DIN EN 61326 and NE21

• Galvanic insulation for accuracy and safety in thermocouple applications

• Single- or dual-point trim

• Custom characteristic curve for application of non-standard sensors

• Difference- and average- measurement

• Explosion protected versions for Europe

• Rugged design, potted electronics
