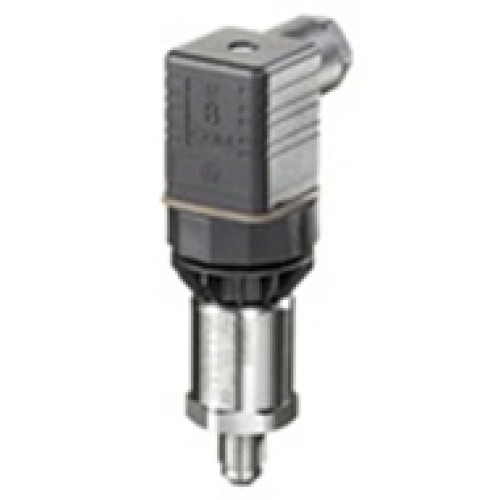

SIEMENS pressure transmitter Pressure measurement without compromise SITRANS P200/P210/P220

The SITRANS transmitters P200, P210 and P220 are compact single-range-transmitters for measurement of absolute and gauge pressure.

In this series we use two different kinds of pressure sensors: two stainless steel sensors and one ceramics sensor. So the measurement of process pressure, absolute pressure and hydrostatic pressure is an easy thing. The measured pressure will be transformed with these sensors into a 4…20-mA- resp. a 0…10-V-signal.

Nonlinearity	≤ 0,25 %
Long-term stability	≤ 0,25% / 12 Monate
Measuring range	SITRANS P200: 1 bar to 60 bar gauge                            0,6 bar to 16 bar absolute
	SITRANS P210: 100 mbar to 600 mbar gauge
	SITRANS P220: 2,5 bar to 600 bar gauge

• High measuring accuracy

• Rugged stainless steel enclosure

• High overload withstand capability

• For aggressive and non-aggressive media

• For measuring the pressure of liquids, gases and vapors

• Compact design
