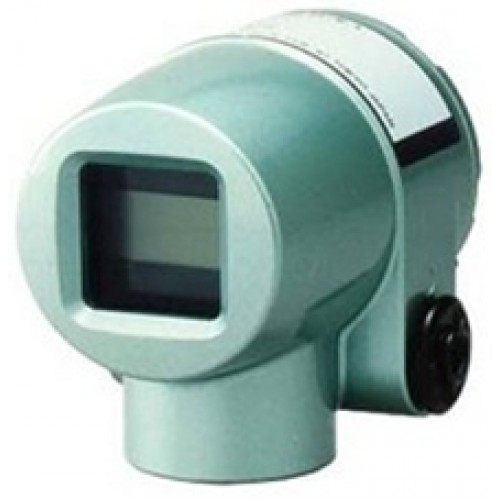

Azbil ATT70 ThermoPLUS Advanced Temperature Transmitter
Description
ATT70 ThermoPLUS Advanced Temperature Transmitter
Overview
The Advanced Temperature Transmitter (models ATT60/70) is a field instrument that converts inputs from thermocouples, mVs, and RTD’s into analog (4 to 20mA) and digital signals and transmits them to receivers. Various parameters can be remotely set and self-diagnosis can be performed through the Smart Field Communicator (SFC). It can also execute two-way communications between the SFC, or HART® 375 communicator, and, via DE protocol, with the TDCS3000 or 3000X and a database, thus facilitating self-diagnosis, range re-setting, and automatic zero adjustment。
Specifications
See Specification Sheet for complete product details.
- Reference Accuracy: Dependent on Input Type, see specification
- Input Types: Thermocouple (J, K, T, N, S, R, E, B); RTD (Pt100); mV
- Output: 4-20mA
- Remote Communications; HART (375 or 475) or DE Protocol (SFC of CommPad)
- Cold Junction Compensation: Selectable between Internal and External
- Ambient Temperature Limits: -4 to 158 °F (-20 to 70 °C) with Display
- Enclosure Rating: NEMA 4X, IEC IP67
Benefits
- ThermoPLUS handles a wide variety of thermal sensors so that any temperature range can be set as required
- Self-diagnostics function can monitor ambient temperature outside normal operating range of -40 to +185 °F, Sensor Failure or T/C disconnect
- Built-in LCD Display for local indication
- FM Explosionproof certification
