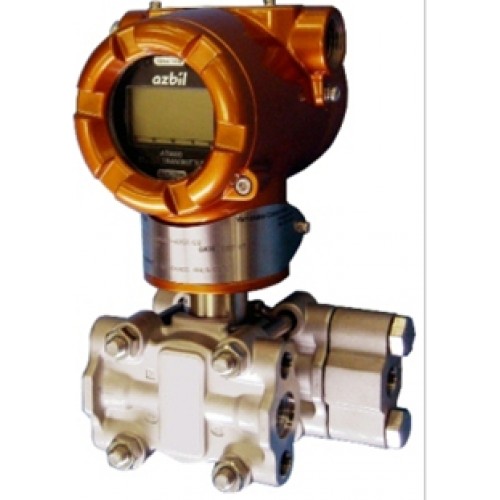

Azbil AT9000 Advanced Transmitter for Gauge Pressure
Description
AT9000 Advanced Transmitter for Gauge Pressure
Overview
The AT9000 Advanced Transmitter lineup includes three ranges specifically designed for gauge pressure measurements of process piping and reactor vessels. Several wetted material combinations are available to meet the demands of your applications. High accuracy and fast speed of response make the AT9000 Gauge Pressure models perfect for your most critical applications.
Specifications
- Reference Accuracy: up to +/-0.04% of calibrated span
- Long-term Stability: +/-0.1% of URL for 10 years
- Speed of Response: under 100msecs
- SIL2 Certification from TUV per IEC 61508
- LCD Dispaly: 5 digit, user configurable. Local Zero Span Adjustment optional
- Ranges:
- GTX60G; 0 - 2.5 to 0 - 500psig
- GTX71G; 0 - 100 to 0 - 2000psig
- GTX82G; 0 - 100 to 0 - 6000psig
- Isolating Diaphragms: 316L SS. ASTM B-575 (equivalent to Hastelloy C276)
Benefits
- Unique characterization and composite semiconductor sensor provides high accuracy and stable operation for years to come.
- Wide rangeability means you can cover more of you applications with less inventory, saving you money.
- A diverse product offering, including measurement ranges, process connections, working pressure ratings and wetted parts materials are available to meet your requirments
- Fast Response time of under 100 msec makes the AT9000 suitable for pressure control in turbine applications
- User-customizable interface can measure and display in the units you decide are right for your application
- Bilingual communication capability (HART & DE Protocol) makes AT9000 the choice for plants with a mixed DCS installed base.
