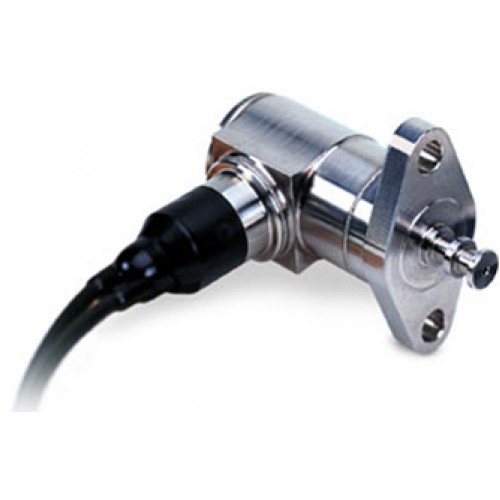

GE General Eastern pressure transmitter PTX 300 Series - Subsea
The PTX 300 series of pressure transmitters has been developed for the offshore oil and gas industries as a compact, high performance device for reliable and long term subsea use. Maintenance free, it is available with operating ranges up to 22,500 psi and is fully submersible with an ambient pressure rating up to 5000 psi. Originally designed for aerospace hydraulic systems, the PTX 300 series utilizes micromachined piezo resistive silicon pressure measurement technology, continually developed and proven by Druck for 30 years.
The product is packaged to suit the specific requirements of subsea hydraulic control systems.In particular, the high pressure containment rating, hydraulic transient protection and integrity of cable/electrical connections combine with the precision measuring technology to make the PTX 300 series a leader in this field.
Features:
Process Connection: Customized Flush flange, Spigot, and SAE threaded connections available in a wide range of material options to suit process and
pressure rated requirements. product lead-time for short cycle projects
GEs propriety and extensively field proven piezoresistive silicon technology for pressure measurement for full scale ranges from 70 bar/1000 psi to 1500
bar/21750 psi. Compact analogue electronics package, qualified to ISO 13628-6. +25 years design life.
Subsea qualified straight or 90º over-mould cable or penetrator connections providing single or dual harness configurations
ASME IX qualified electron beam welded housing in customized materials and hyperbaric use down to 3500 metres.
Specifiction:
Pressure Range: Any zero based range from 70 bar to 1500 bar sealed gauge or absolute
Accuracy: <+/- 0.1% FS (non-linearity, hysteresis and repeatability)
Drift: <+/-0.1% FS/Year
Proof Pressure: 1.5x full scale range up to 1875 bar
Hyperbaric Containment up to 345 bar
Operating Temperature Range: -30°C to +50°C
Storage Temperature: -40°C to +80°C
Supply Voltage: 10 to 32 Vdc
Output Signal: 4-20mA (others available on request)
Output Response: 0.5ms (2KHz)
Resolution: Infinite
Media compatibility: Process: Inconel 625/Inconel 718 (To NACE MR 0175)
External: Options available (Stainless Steel 316L, Inconel 625) and Hypalon
Process Connection: custom - face seal/spigot/threaded
Hyperbaric Containment: up to 345 bar
Material Traceability: BS EN10204:3.1
Shock & Vibration: in accordance with ISO 13628-6 Q2
Sensor Mounting: Any orientation
