Murphy pressure transmitter PD8100 Series

Description

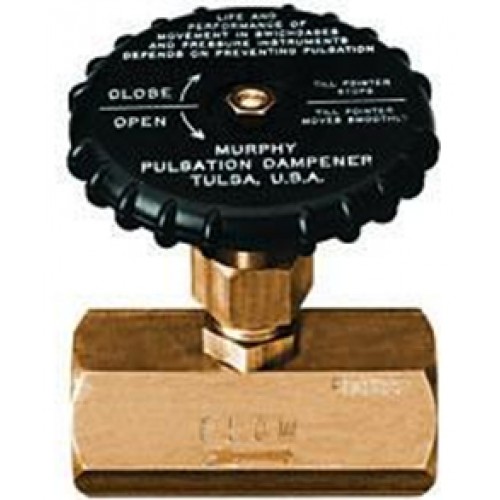

The PD8100 Series eliminates pointer flutter on pressure indicating SWICHGAGE® devices which are subject to pulsating pressure from reciprocating pumps or compressors. It also allows a close setting of high and low contact points providing for more accurate pressure indication and control of equipment.

The PD8100 Series decreases wear on geared movements and increases the life of pressure indicating instruments by eliminating excessive gage strain and unnecessary movement. A necessity which quickly pays for itself by protecting any pressure indicating and control instrument which is subject to pulsation.

PD8100 SERIES ARE NOT FOR USE ON OXYGEN OR LIQUID OXYGEN APPLICATIONS.

Quality built with a large diameter valve stem wheel for ease of adjustment with clearly printed operating instructions. Machined from 1-3/8 in. (35 mm) hex bar stock. A two degree taper on valve and stem assure positive dampening.

Available in brass, carbon steel, 303 stainless steel or 316 stainless steel to meet pressure and environmental requirements with either 1/2 NPT or 1/4 NPT inlet connections.

Specifications

PD8183: All wetted parts are Brass.
             Rated to 3,000 psi (20.68 MPa) [206.80 bar].

PD8184: All wetted parts are Carbon steel.
             Rated to 5,000 psi (34.47 MPa) [344.70 bar].

PD8185: All wetted parts are 303 stainless steel.
             Rated to 10,000 psi (68.95 MPa) [689.50 bar].

PD8190: All wetted parts are 316 stainless steel.
             Rated to 10,000 psi (68.95 MPa) [689.50 bar].
             Meets NACE standard MR-01-75 for direct exposure to H2S.

Operating Temperature: -15 to 400°F (-26 to 204°C)

Shipping Weight (all models): 2 lbs.(0.9 kgs.)

Shipping Dimensions (all models): 4-3/4 x 4-3/4 x 3-1/4 in. (121 x 121 x 83 mm)
