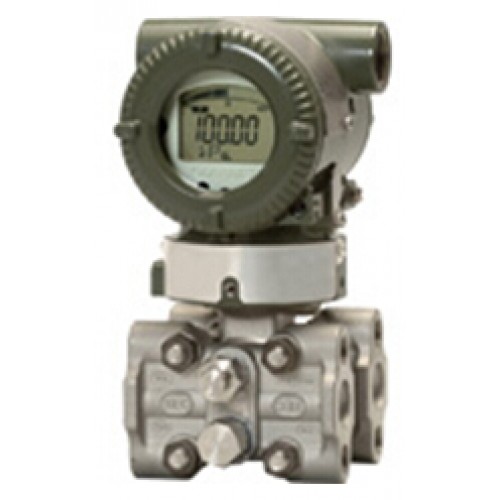

Yokogawa EJA-E Pressure Transmitters

The EJA-E range of transmitters is Yokogawa’s most recent evolution of the DPharp family of pressure transmitters, being released in 2012. It combines the ruggedness and success of the workhorse EJA-A range with the class-leading technology and performance of the EJX. It offers enhanced performance and reliability with built-in safety certification. Its small form factor and rugged materials provide the level of robustness that is expected from Yokogawa products.

Model	Application		Type	Capsule	Measurement Span		Maximum Working Pressure
					kPa	inH2O	MPa	psi
	Differential		Traditional-	F	0.5 to 5	2 to 20	16	2300
EJA110E	Pressure		Mounting*1	M	1 to 100	4 to 400	16	2300
				H	5 to 500	20 to 2000	16	2300
				V	0.14 to 14 MPa	20 to 2000 psi	16	2300
	Flow		Integral	F	1 to 5	4 to 20	16	2300
EJA115E			Orifice	M	2 to 100	8 to 400	16	2300
				H	20 to 210	80 to 830	16	2300
	Differential		Extended	M	2.5 to 100	10 to 400	Based on Flange Rating
EJA118E	Pressure		Flush	H	25 to 500	100 to 2000
	& Liquid		Combination
	Level
	with
	Remote
	Seals
	Draft		Traditional-	E	0.1 to 1	0.4 to 4	50 kPa	7.25
EJA120E	Range		Mounting*1
	Differential		Traditional-	M	1 to 100	4 to 400	32	4500
EJA130E	Pressure		Mounting*1	H	5 to 500	20 to 2000	32	4500
	& Liquid
	Level
	Liquid		Flush	M	1 to 100	4 to 400	Based on Flange Rating
EJA210E	Level,		Extended	H	5 to 500	20 to 2000
	(Closed
	or Open
	Tank)
	Absolute		Traditional-	L	0.67 to 10	0.2 to 2.95 inHg	10 kPa	2.95 inHg
EJA310E	(Vacuum)		Mounting*1	M	1.3 to 130	0.39 to 38 inHg	130 kPa	38 inHg
	Pressure*2			A	0.03 to 3.5 MPa	4.3 to 500 psi	3.5	500
				B	0.14 to 16 MPa	20 to 2300 psi	16	2300
	Gauge		Traditional-	H	5 to 500	20 to 2000	500 kPa	2000 inH2O
EJA430E	Pressure		Mounting*1	A	0.03 to 3.5 MPa	4.3 to 500 psi	3.5	500
				B	0.14 to 16 MPa	20 to 2300 psi	16	2300
	Gauge		Flush	A	0.06 to 3.5 MPa	8.6 to 500 psi	Based on Flange Rating
EJA438E	Pressure			B	0.46 to 16 MPa	66 to 2300 psi
	with Remote
	Seal		Extended	A	0.06 to 3.5 MPa	8.6 to 500 psi
				B	0.46 to 7 MPa	66 to 1000 psi
	High		Traditional-	C	5 to 32 MPa	720 to 4500 psi	32	4500
EJA440E	Gauge		Mounting*1	D	5 to 50 MPa	720 to 7200 psi	50	7200
	Absolute		Direct-	A	10 to 200	1.45 to 29 psi	200 kPa	29
EJA510E	& Gauge		Mounting	B	0.1 to 2 MPa	14.5 to 290 psi	2	290
EJA530E	Pressure*2			C	0.5 to 10 MPa	72.5 to 1450 psi	10	1450
				D	5 to 50 MPa	720 to 7200 psi	50	7200
